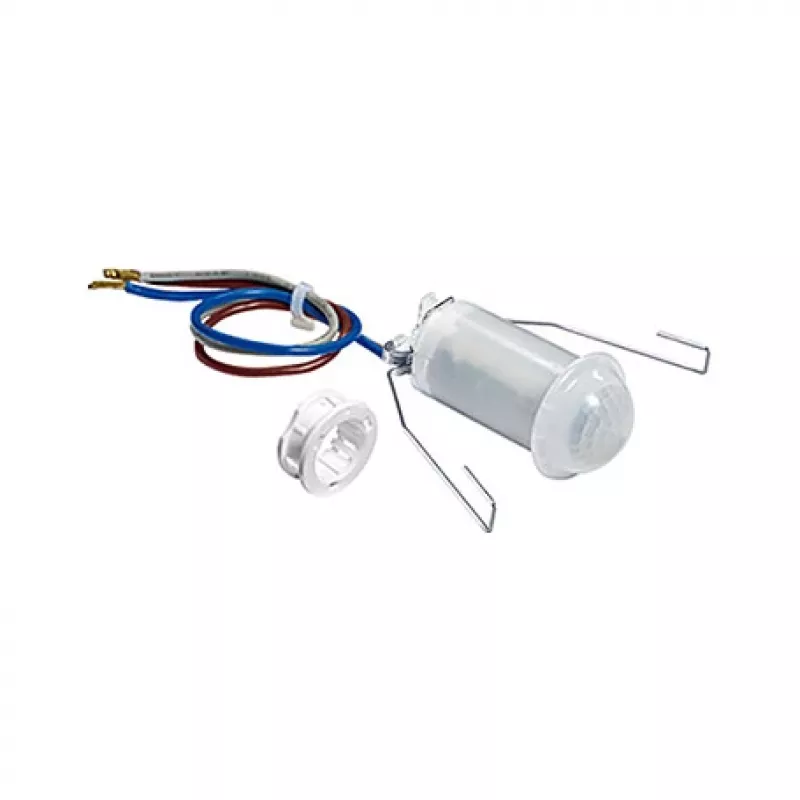

ESYLUX MD-C360i/6 mini plafondbewegingsmelder - bedraad - 6 m - wit - IP65 - 2000 lux

The ESYLUX MD-C360i/6 mini is a compact, wired ceiling-mounted motion detector designed for professional indoor and outdoor use. With a 360° detection angle and a 6 m diameter range (at 2.5 m mounting height), it provides reliable presence and motion detection for lighting control in corridors, stairwells, bathrooms, and covered outdoor areas. Its IP65 rating makes it dust-tight and protected against water jets, ensuring durability in demanding environments.

Advantages

Energy-efficient and easy to install, the MD-C360i/6 mini features an adjustable light sensor (5–2000 Lux) and delay time (10 s–60 min), allowing precise customization. The test mode and teach-in function simplify commissioning, while remote control capability adds convenience. Its UV-stabilised polycarbonate housing ensures long-lasting performance.

Suitable for

• Ceiling-mounted motion detection in indoor areas such as hallways, staircases, and restrooms
• Covered outdoor zones like canopies and entrance areas
• Lighting automation in commercial and residential buildings

Key specifications

• Detection angle: 360°
• Detection range (diameter): 6 m at 2.5 m mounting height
• Mounting type: Ceiling flush-mount
• Recommended mounting height: 2.0–4.0 m
• Colour: White
• IP rating: IP65
• Light sensor range: 5–2000 Lux
• Connection type: Wired
• Power supply: 230 V AC, 50 Hz
• Power consumption: ~0.5 W
• Switching output: 1x NO contact (normally open)
• Max. switching power (incandescent/halogen): 2300 W
• Max. switching power (fluorescent/LED): 1150 VA
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Installation opening diameter: 25 mm
• Delay time (adjustable): 10 s–60 min
• Special features: Test mode, teach-in function, remote control capability

Recommendations

For optimal performance, mount at the recommended height and avoid obstructions in the detection field. Use the teach-in function to fine-tune sensitivity. Pair with compatible ESYLUX lighting controls for seamless integration.
