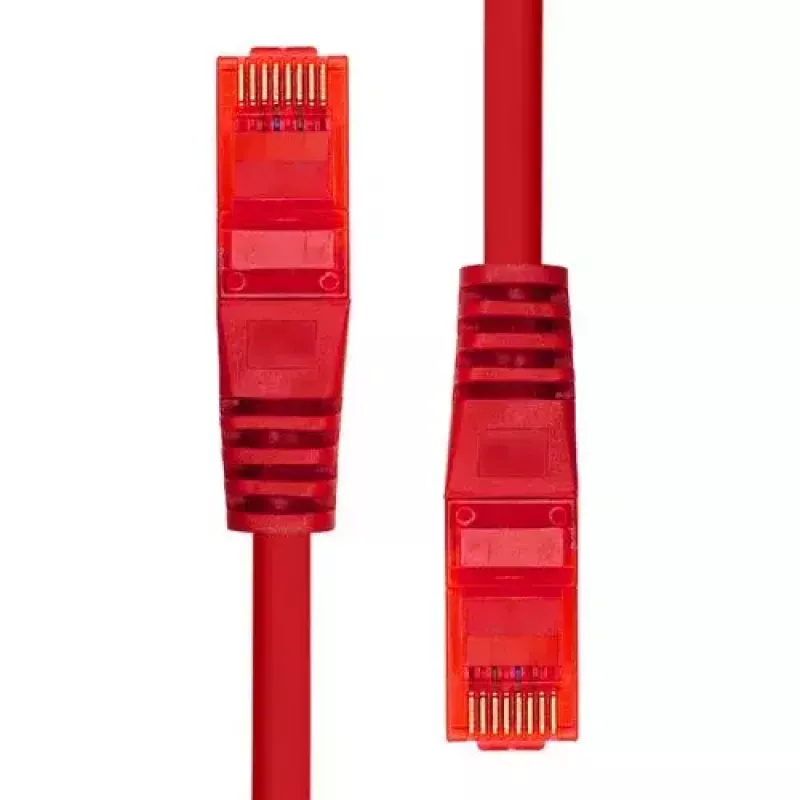

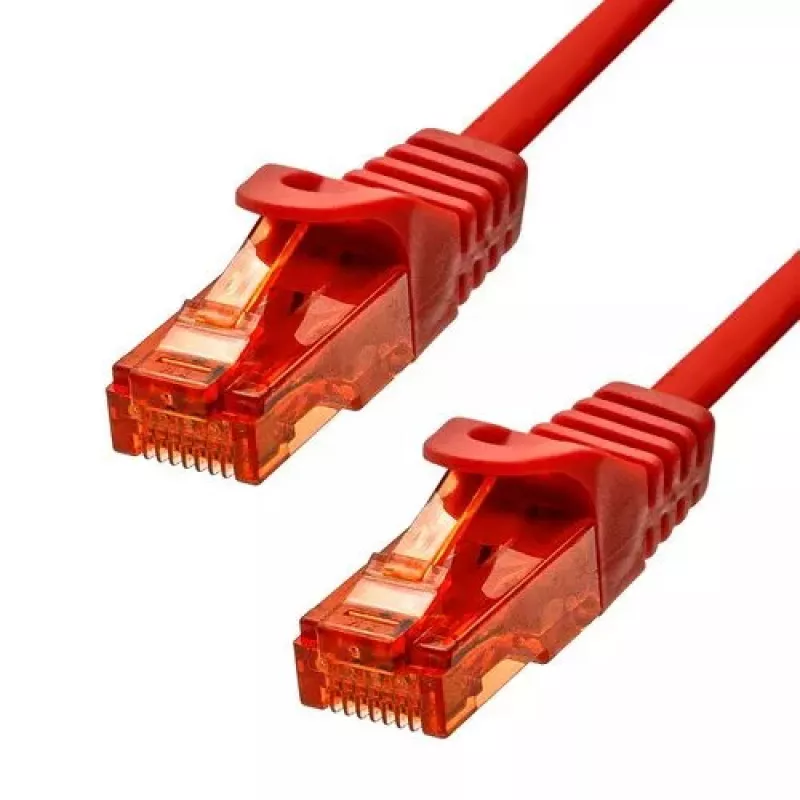

Ethernetkabel ProXtend CAT6 RJ-45 U/UTP 20M rood

The ProXtend CAT6 U/UTP CU LSZH Ethernet Cable (20 m) with RJ-45 connectors is designed for high-speed wired networks. Constructed with 99.9% pure copper strands and 24 AWG conductors, the cable supports 10/100/1000Base-T(X) networks and a data transfer rate of 1000 Mbit/s. The outer jacket is made of LSZH material to reduce smoke and toxic fumes in case of fire. The cable is red and weighs 0.773 kg.

Advantages

This ProXtend CAT6 cable features 99.9% pure copper conductors and 24 AWG for stable signal integrity, strain relief for increased durability, and a snagless latch design for secure connector installation. RJ-45 contacts are plated with 50µ"U gold for improved transmission quality and wear resistance. The cable supports PoE+ and is suitable for standard Gigabit Ethernet installations while meeting LSZH safety requirements.

Suitable for

• Wired Gigabit Ethernet connections (10/100/1000Base-T)
• Network equipment requiring PoE+ (Power over Ethernet Plus)
• Cable runs where low-smoke, zero-halogen jacket is required (LSZH environments)
• Office, data center patching, and residential network setups

Key specifications

• Length: 20 m
• Connectors: RJ-45 — both ends
• Cabling technology: 10/100/1000Base-T(X)
• Conductor: 99.9% pure copper, 24 AWG
• Jacket: LSZH (Low Smoke Zero Halogen)
• Contact plating: 50µ"U gold
• Supports: PoE+
• Colour: Red
• Weight: 0.773 kg

How to use

Route the cable between network devices and insert each RJ-45 connector into the corresponding Ethernet port until the latch clicks. Ensure connectors are properly aligned to avoid bending the contacts. For best performance, avoid tight bends and kinks and maintain separation from strong electrical interference sources. Use appropriate cable management for long runs and patch panels.

Recommendations

For reliable Gigabit performance, keep cable runs within recommended lengths, avoid excessive bending (minimum bend radius roughly four times the cable diameter), and install in environments compatible with LSZH materials. Use when PoE+ is required and when a red cable colour helps identify network segments.
