EXSYS EX-6007POE-WO PoE+ Gigabit-injector, metalen behuizing, 12-24V DC-ingang, zonder voeding

Powering network devices in locations without nearby AC outlets often means running extra cabling or installing a separate PoE switch. The EXSYS EX-6007POE-WO solves this by injecting up to 30W of PoE+ power into a Gigabit Ethernet line from a low-voltage DC source.

Who is it for

Installers and integrators who need to power IP cameras, access points, or other PoE devices in industrial, outdoor, or mobile environments where 12-24V DC is available but mains power is not.

Main features

• PoE+ injector compliant with IEEE 802.3at, backward compatible with IEEE 802.3af.
• Supports 10/100/1000 Mbps data rates for Gigabit Ethernet.
• Wide DC input range: 12-24V DC via 2-pin terminal block.

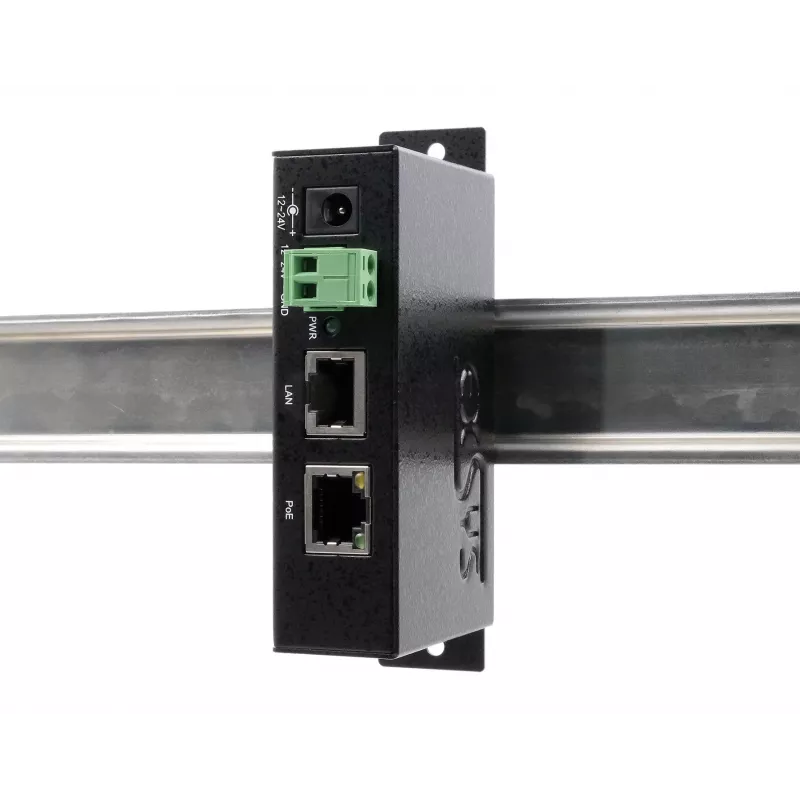

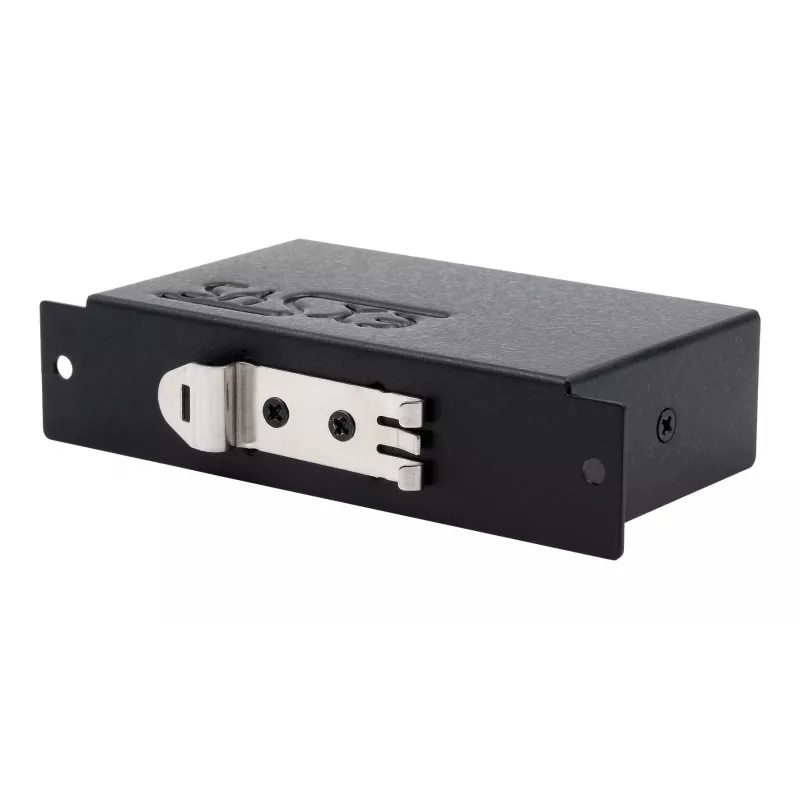

• Robust metal housing with IP30 rating, suitable for DIN-rail or wall mounting.
• LED indicators for power and PoE status.
• Protection against over-current, over-voltage, and short circuits.

Specifications

• PoE output: 48V DC, max 30W (PoE+).

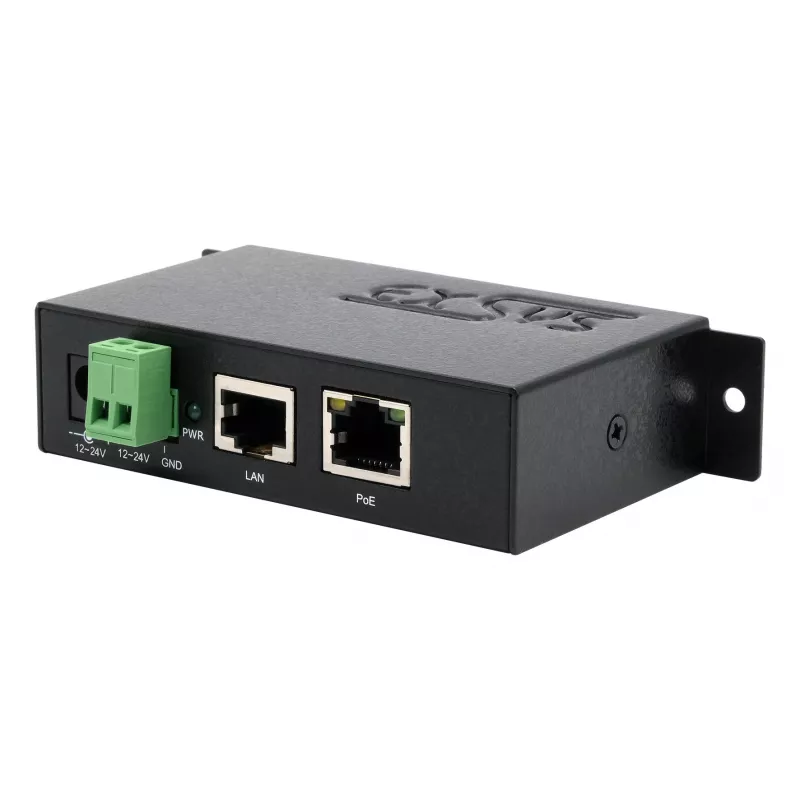

• Connectors: 1x RJ45 data in, 1x RJ45 data+power out, 1x 2-pin terminal block for DC input.
• Operating temperature: -40°C to 75°C.
• Storage temperature: -40°C to 85°C.
• Operating humidity: 5% to 95% RH non-condensing.
• Certifications: CE, FCC, RoHS.

Tips

Pair this injector with a regulated 12-24V DC power supply (not included) sized for your PoE device's power draw. For outdoor use, place the injector in a protected enclosure to maintain the IP30 rating.
