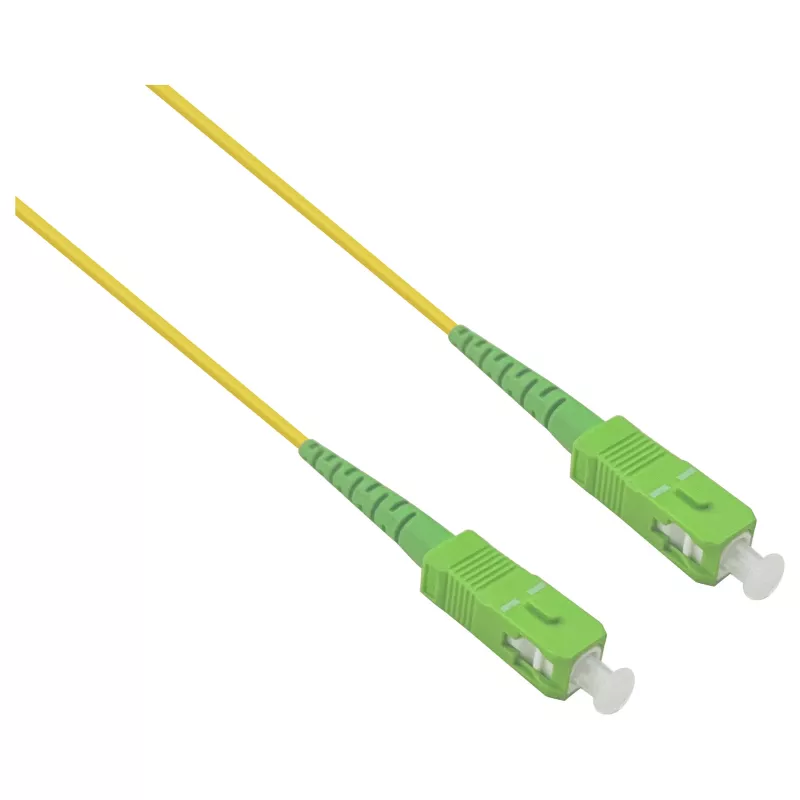

HELOS glasvezel OS2 patchkabel simplex LSZH 2,0mm SC/APC-SC/APC geel 15 m

The HELOS LWL OS2 Patchkabel Simplex LSZH 2.0mm SC/APC-SC/APC Yellow 15m is a high-quality fiber optic patch cable designed for reliable single-mode transmission. Ideal for data centers, LAN, FTTx, and telecommunications applications, this cable ensures low insertion loss and high return loss for optimal performance.

Advantages

This patch cable offers excellent signal integrity with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces, reducing toxic fumes and smoke in case of fire. The 2.0mm diameter makes it flexible and easy to install in tight spaces.

Suitable for

• Data center cabling
• Local Area Networks (LAN)
• Fiber to the x (FTTx) deployments
• Telecommunications infrastructure

Key specifications

• Cable Type: Fiber Optic Patch Cable, Single-mode OS2 (G.652.D)
• Fiber Count: Simplex (1 Fiber)
• Connectors: SC/APC to SC/APC
• Length: 15 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Diameter: 2.0 mm
• Color: Yellow
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Polish Type: APC (Angled Physical Contact)
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.25 dB/km
• Operating Temperature: -20°C to 70°C
• Minimum Bend Radius: 10D (20mm)
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/APC interfaces. Store in a clean, dry environment.
