Interfacekaart DeLOCK 89630 intern M.2 SATA

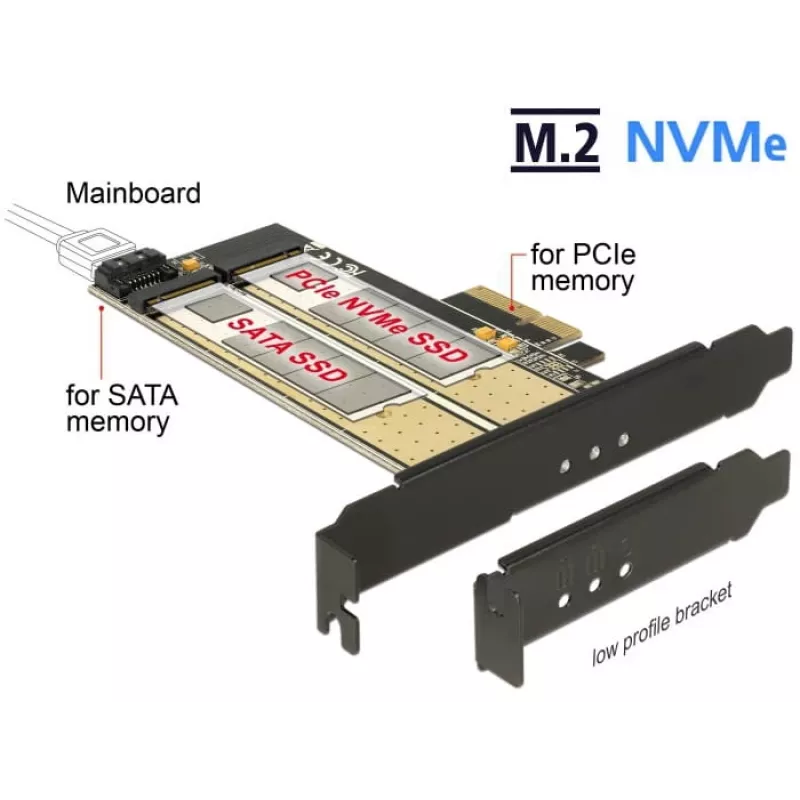

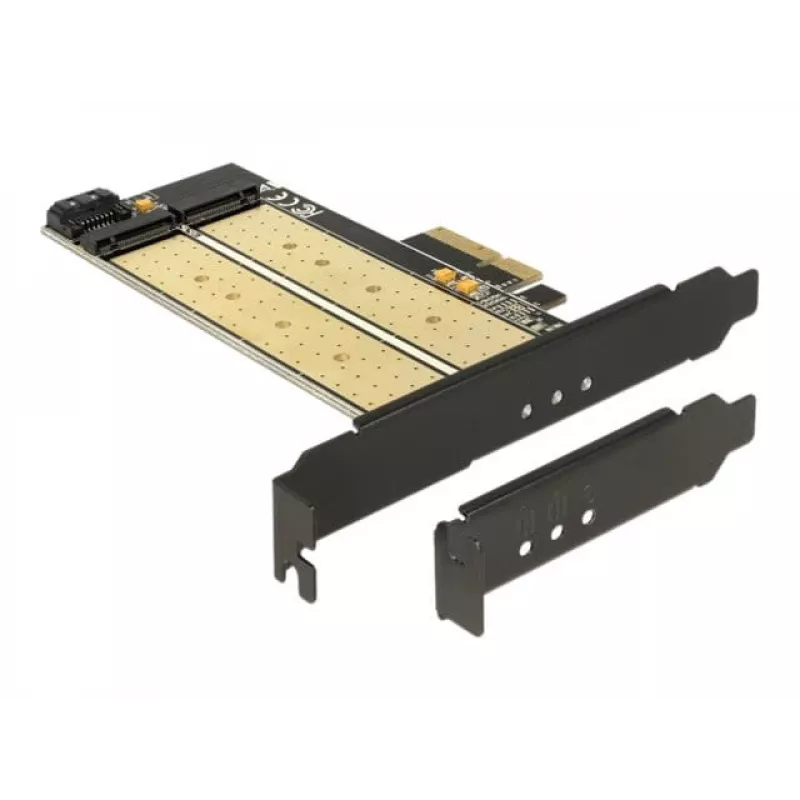

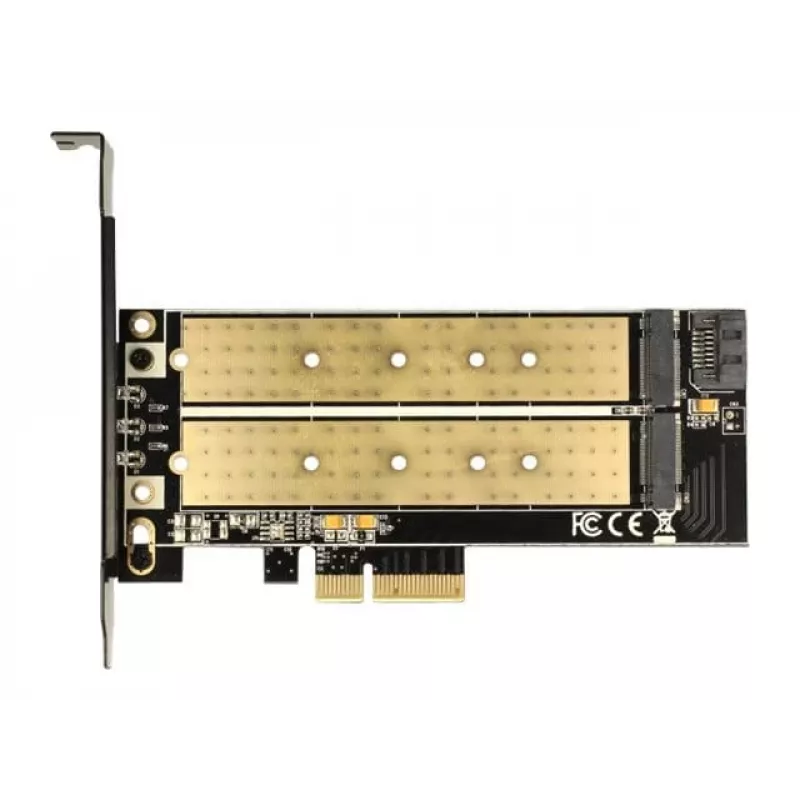

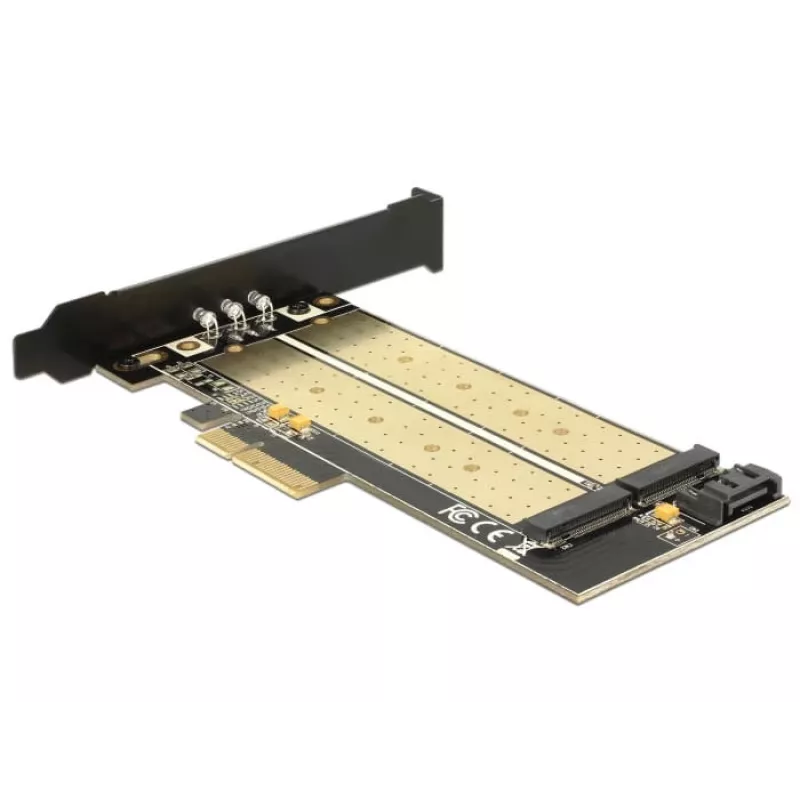

The DeLOCK 89630 is an internal PCIe interface card that adds two M.2 slots to a desktop PC. One slot supports M.2 SATA modules (formats 22110, 2280, 2260, 2242, 2230) and connects to the motherboard via a SATA cable; the second slot supports M.2 PCIe modules (formats 22110, 2280, 2260, 2242, 2230). Both M.2 slots can be used simultaneously, enabling flexible expansion of internal storage without external adapters.

Advantages

The card provides two independent M.2 interfaces on a single PCIe slot, combining one SATA and one PCIe M.2 connection. It uses passive cooling and is compatible with common M.2 module lengths, allowing easy installation of a variety of SSDs. The adapter supports standard Windows versions and fits into typical desktop systems to increase internal storage options.

Suitable for

• Upgrading a desktop PC with additional M.2 SATA and M.2 PCIe SSDs
• Systems that need extra internal storage without replacing the motherboard
• Users who require multiple M.2 drives for data, cache or separate OS installations

Key specifications

• Host interface: PCIe
• Output interfaces: M.2 (SATA) and M.2 (PCIe)
• Supported M.2 formats: 22110, 2280, 2260, 2242, 2230 for both slots
• Connection for M.2 SATA: requires SATA cable to motherboard
• Cooling: passive
• Compatibility: Windows 10, 8.1, 8, 7

How to use

Install the DeLOCK 89630 into an available PCIe slot on the motherboard. Mount M.2 modules into the appropriate connectors and secure them according to their length. Connect the M.2 SATA module to the motherboard using a SATA cable. After hardware installation, boot the system and verify drive detection in BIOS/UEFI and the operating system. Install drivers if required by the OS.

Recommendations

Ensure the PC is powered off and unplugged before installation. Use compatible M.2 module sizes and a free SATA port on the motherboard for the M.2 SATA slot. Allow sufficient case airflow around the card even though it uses passive cooling.
