Keystone-module DeLOCK 86299

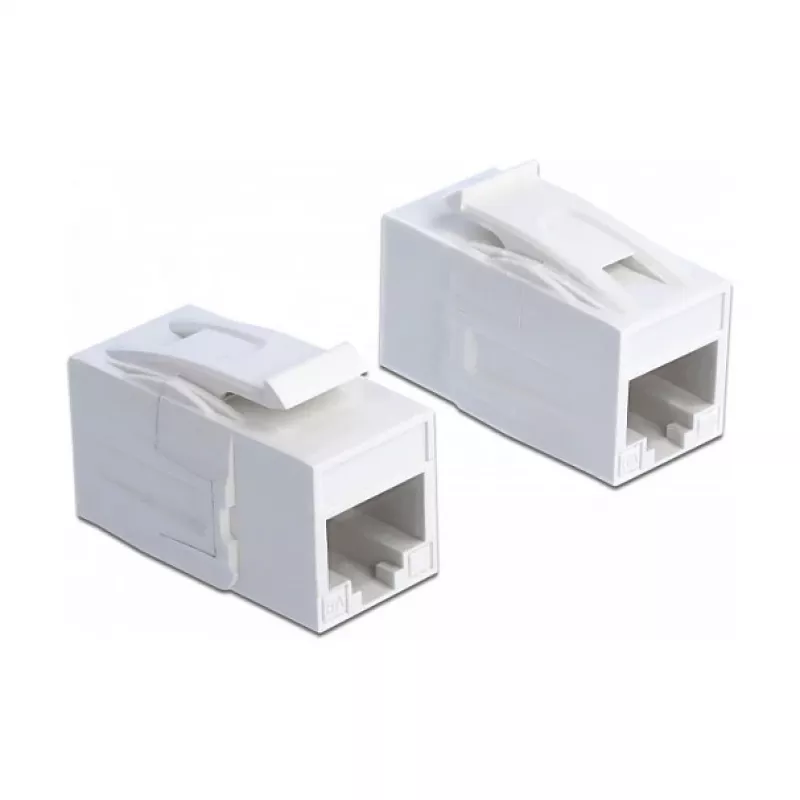

The DeLOCK 86299 keystone module is a flat, white RJ-45 insert designed to extend twisted pair network cabling and to snap into standard keystone openings such as patch panels, faceplates or surface-mount boxes. Its compact, standardised dimensions (16.8 mm width, 31.1 mm depth, 22.2 mm height) allow straightforward installation and integration into various network installations.

Advantages

The module provides a standard RJ-45 interface in a compact keystone format for easy replacement or extension of network ports. Its standardised size ensures compatibility with keystone panels and faceplates. The flat design and single-piece construction simplify mounting and save space in patch panels or surface-mount boxes.

Suitable for

• Extending or repairing twisted pair network cables
• Installation in keystone patch panels and wall faceplates
• Use in surface-mount boxes and small network outlets
• Home and small-office Ethernet connections

Key specifications

• Brand: DELOCK
• Model / MPN: 86299
• EAN: 4043619862993
• Type: Keystone RJ-45 module (flat)
• Colour: White
• Dimensions: 16.8 mm (W) x 31.1 mm (D) x 22.2 mm (H)
• Packaging: Sold individually

How to use

Insert the keystone module into a compatible keystone opening until it snaps into place. Connect the twisted pair cable to the RJ-45 connector following the appropriate wiring scheme (e.g., T568A or T568B) and test the connection with network testing equipment. When necessary, remove the module by gently prying it out of the panel or faceplate.

Recommendations

For reliable network performance, use proper cable termination tools and verify wiring continuity after installation. Ensure the module is seated correctly in a compatible keystone slot and avoid excessive force when inserting or removing the module.
