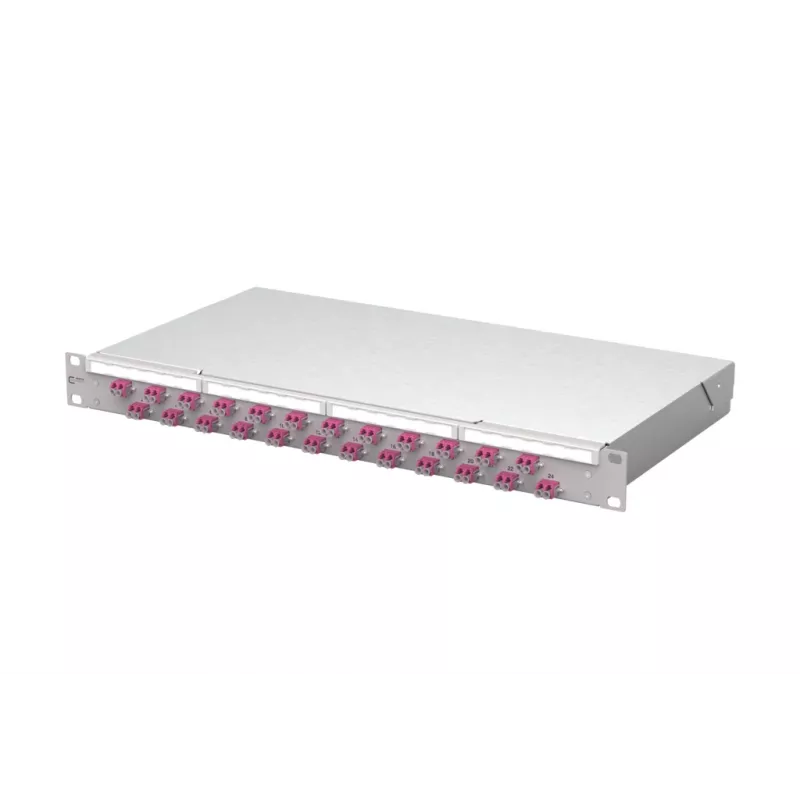

Metz mecatech VIK 24-poorts LC-duplex OM4 glasvezel-patchpaneel, 1U, 19 inch, lichtgrijs 1504507524-E

Fiber optic patch panel with 24 LC-Duplex ports, pre-assembled with OM4 multimode adapters. The mecatech VIK series provides high-density fiber termination in a 1U 19-inch rack-mount form factor, suitable for data centers and structured cabling.

Advantages

Pre-assembled with zirconia ceramic sleeve LC-Duplex adapters, eliminating field assembly time. Integrated cable management supports organized rear cable entry. Steel housing with light grey finish (RAL 7035) ensures durability and consistent appearance in rack environments.

Suitable for

• Data center fiber distribution
• LAN backbone connections
• Telecommunications rooms

Key specifications

• 24 LC-Duplex ports
• OM4 multimode fiber support
• 1U rack height, 19-inch mounting
• Steel housing, light grey (RAL 7035)
• Rear cable entry with integrated management

Recommendations

Use with OM4-rated trunk cables and LC-Duplex patch cords for optimal performance in high-speed multimode networks.
