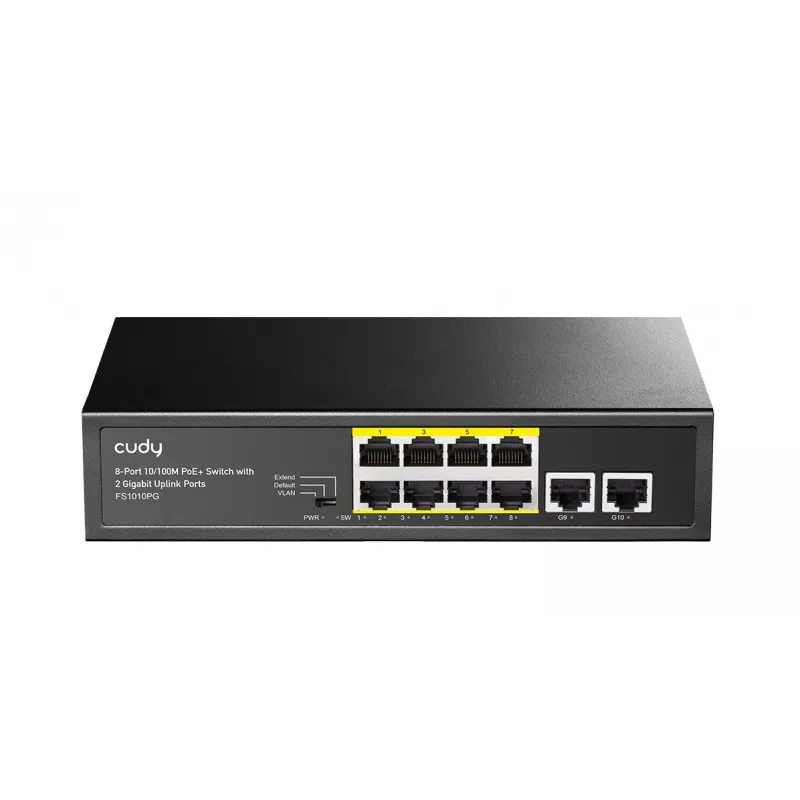

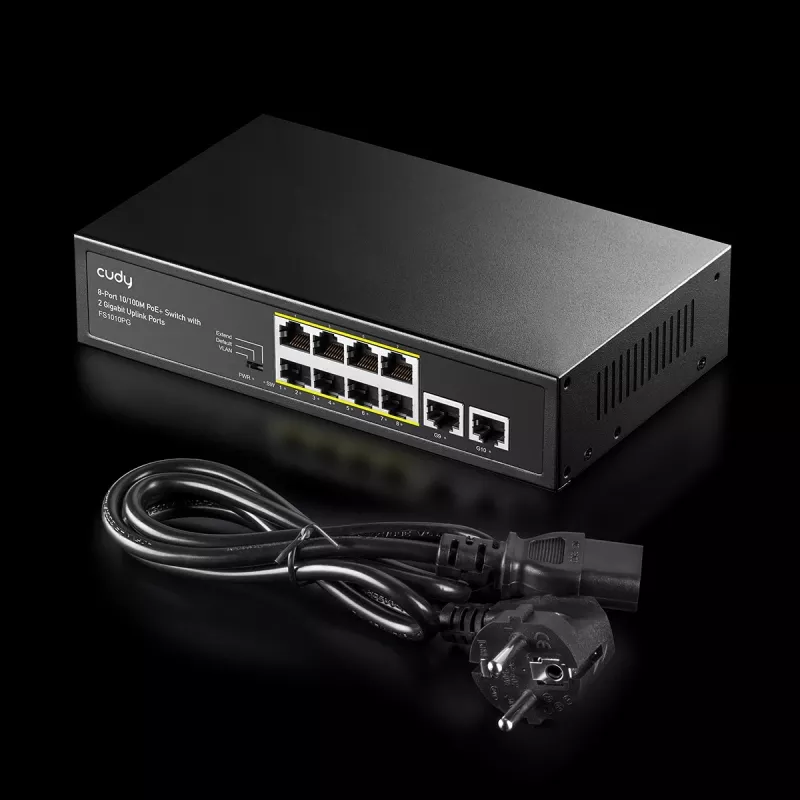

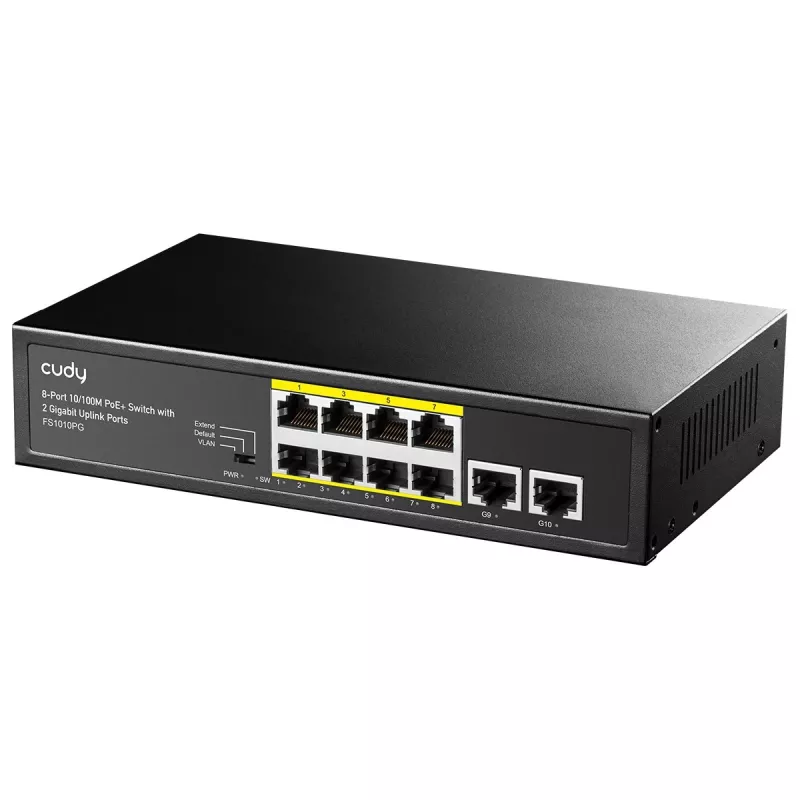

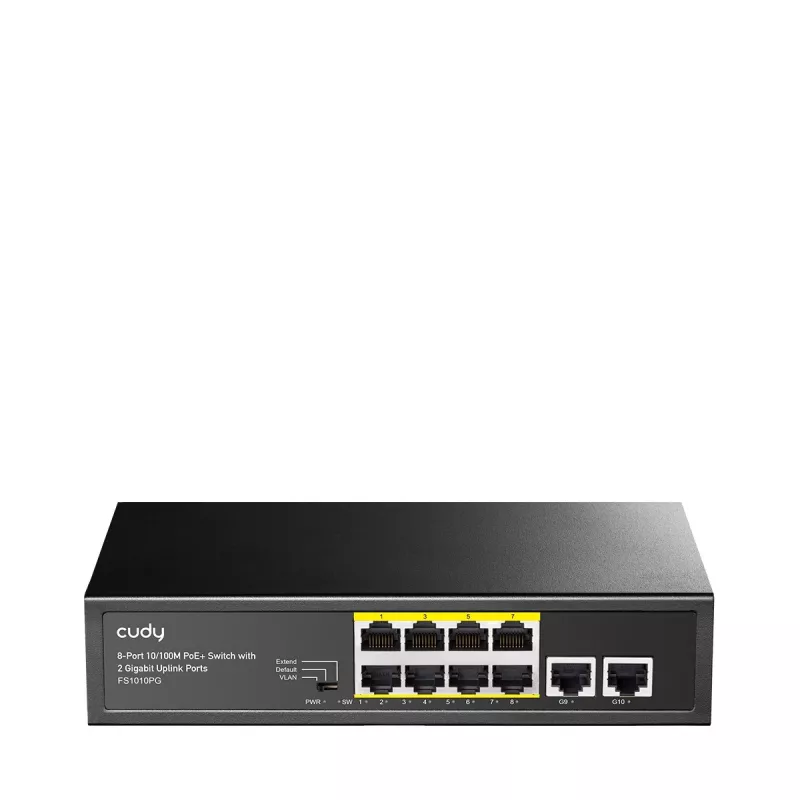

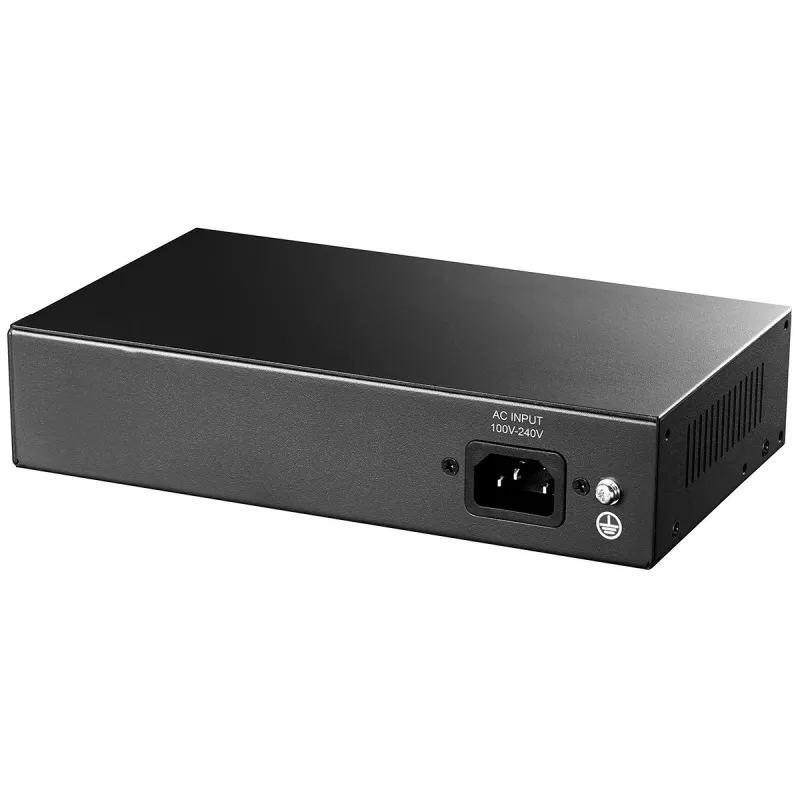

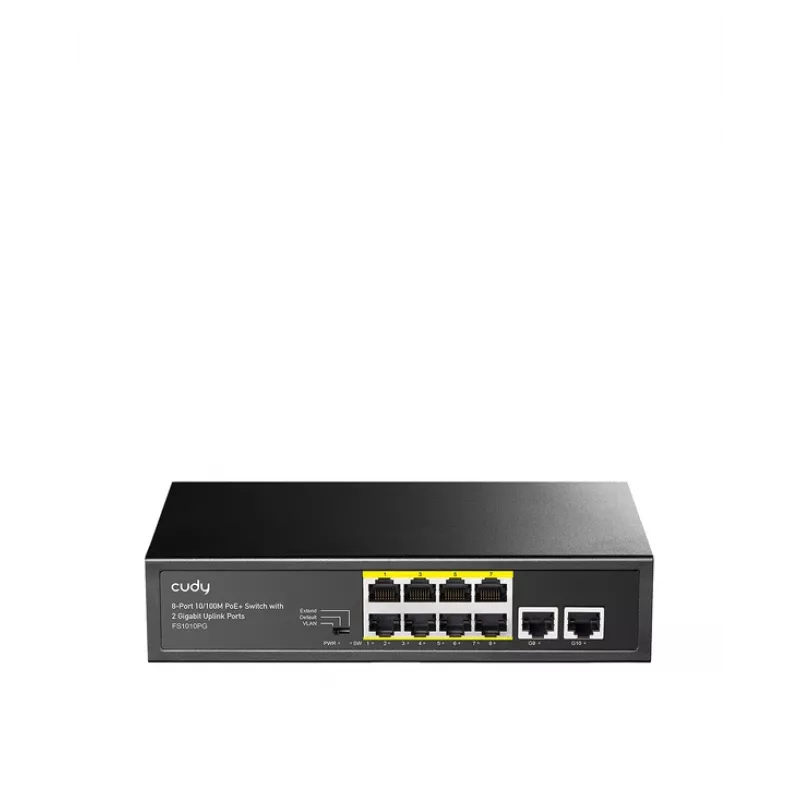

Netwerk-switch Cudy FS1010PG — 10/100 Mbps, 8 PoE-poorten, 2 uplink, 120W PoE-budget, metalen behuizing

The PoE switch provides a total power budget of 120 W with a maximum of 30 W available to a single PoE port, compliant with IEEE802.3af/at standards. It is designed for Plug & Play installation and a fanless metal housing for quiet, reliable operation. The switch supports common network devices such as IP cameras, VoIP phones and Wi‑Fi access points for small offices, homes and businesses.

Advantages

The switch supplies standardized PoE power without damaging non-standard PoE devices or conventional PoE switches. An integrated PoE watchdog continuously monitors connected remote devices and automatically restarts any device that reports an error to restore normal operation. Fanless construction and a metal case improve heat dissipation and reduce noise while ensuring durability. Pin assignment follows Mode A: 1/2(+), 3/6(-).

Key specifications

• Total PoE power budget: 120 W
• Maximum power per port: 30 W
• PoE standards: IEEE802.3af/at
• PoE watchdog: automatic device monitoring and reboot
• Design: Plug & Play, fanless
• Housing: metal case for better heat dissipation
• Pin assignment: Mode A (1/2(+), 3/6(-))

How to use

Connect the PoE switch to your network and attach PoE-capable devices such as IP cameras, VoIP phones or Wi‑Fi access points to the PoE ports. The device is Plug & Play and requires no additional configuration for basic operation. The built-in watchdog monitors remote devices and will automatically restart a device if a fault is detected. Ensure the total power consumption of connected PoE devices does not exceed the 120 W budget and that no single device requires more than 30 W.

Recommendations

For reliable operation, distribute connected devices so the total PoE load remains within 120 W and avoid connecting a single device that requires more than 30 W. Place the switch in a well-ventilated location to assist heat dissipation despite the fanless design. Use with IP cameras, VoIP phones and Wi‑Fi access points for small office, home or business deployments.
