Panasonic AW-UE4KG 4K PTZ-conferentiecamera met 24-voudige optische zoom, PoE+, zwart

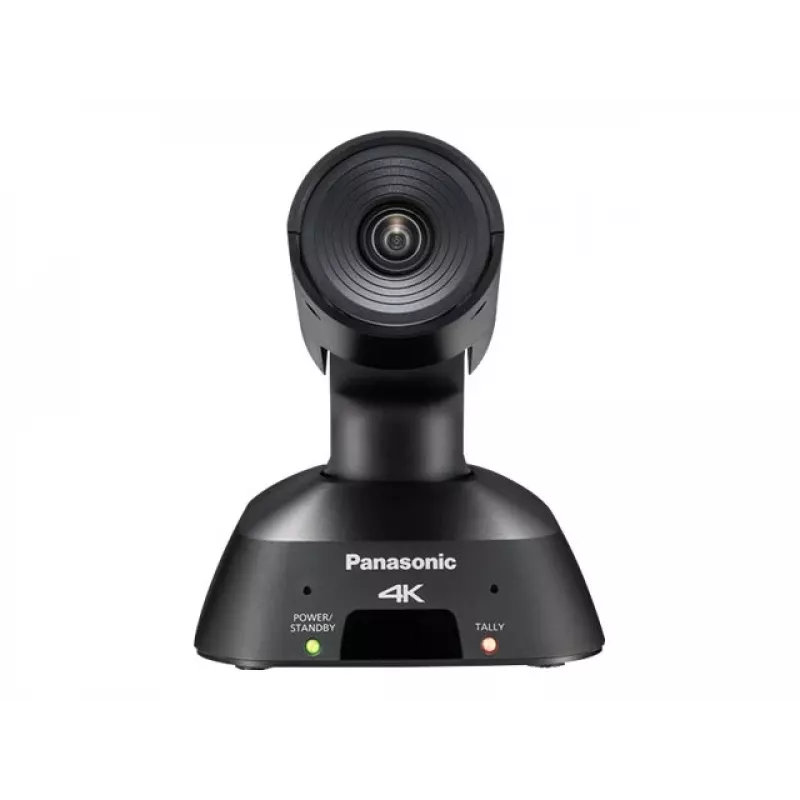

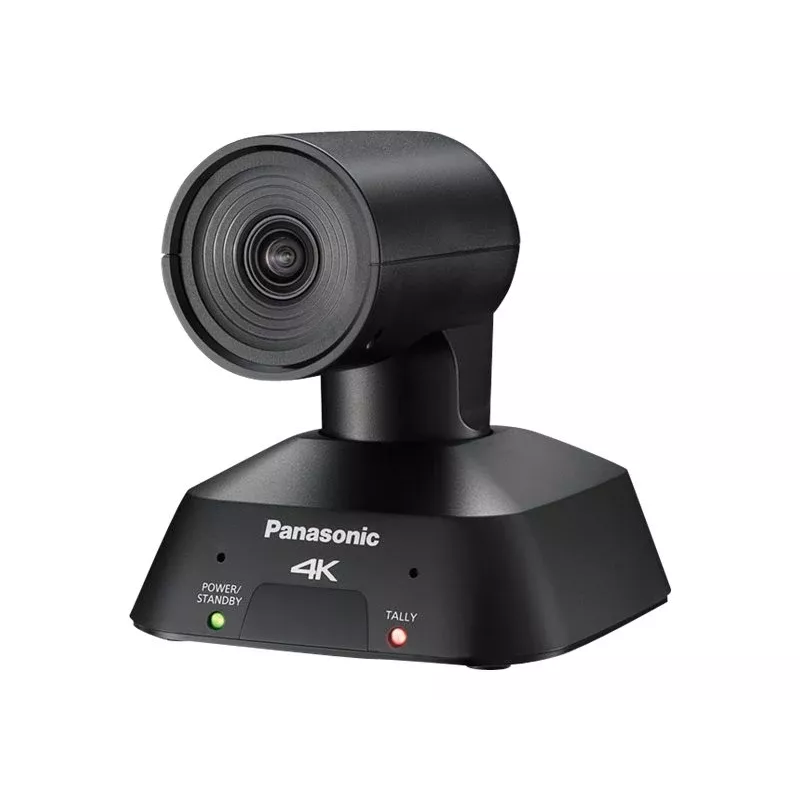

The Panasonic AW-UE4KG is a professional 4K PTZ conference camera designed for high-quality video conferencing, live streaming, and broadcast applications. Featuring a 1/2.5-inch MOS sensor, it delivers stunning 3840 x 2160 resolution at 30fps with exceptional detail and color accuracy. The camera supports 24x optical zoom and advanced i-Zoom technology, providing up to 28x zoom in 4K mode and 36x in Full HD. With a wide horizontal field of view of 80.8°, it captures entire rooms effortlessly. The motorized pan/tilt mechanism offers ±175° pan and -30° to +90° tilt, enabling precise remote control. Connectivity options include HDMI, USB 3.0, and RJ-45 for IP streaming, with support for H.264, H.265, and MJPEG compression. Power is supplied via PoE+ (IEEE802.3at) or DC 12V, simplifying installation. The camera also features a stereo mini jack audio input and comes with an IR remote control. Its sleek black design fits seamlessly into any professional environment.

Advantages

Experience ultra-high-definition 4K video with smooth pan/tilt operation and versatile connectivity. The 24x optical zoom and i-Zoom ensure you never miss a detail, while PoE+ reduces cabling needs. Ideal for boardrooms, lecture halls, and houses of worship.

Suitable for

• Corporate boardrooms and meeting rooms
• Educational institutions and lecture halls
• Broadcast studios and live event production
• Houses of worship and auditoriums

Key specifications

• Sensor: 1/2.5-inch MOS
• Max Resolution: 3840 x 2160 (4K UHD)
• Optical Zoom: 24x
• i-Zoom: 28x (4K), 36x (FHD)
• Digital Zoom: 16x
• Horizontal Field of View: 80.8° (wide end)
• Pan Range: ±175°
• Tilt Range: -30° to +90°
• Video Outputs: HDMI, USB 3.0
• Audio Input: Stereo mini jack (3.5mm)
• Video Compression: H.264, H.265, MJPEG
• Network Interface: RJ-45 (LAN)
• Power Supply: PoE+ (IEEE802.3at), DC 12V
• Color: Black
• Minimum Illumination: 0.3 lx (F1.8, 50IRE, 30fps)
• TV Lines: 1400 TVL (horizontal, 4K output)
• Control Interfaces: IP, USB, IR Remote

Recommendations

For optimal performance, use a PoE+ switch or injector. Pair with a Panasonic PTZ controller for advanced operation. Ensure adequate lighting for best image quality.
