Patchkabel Digitus CAT 5e U/UTP DK-1511-020 2m

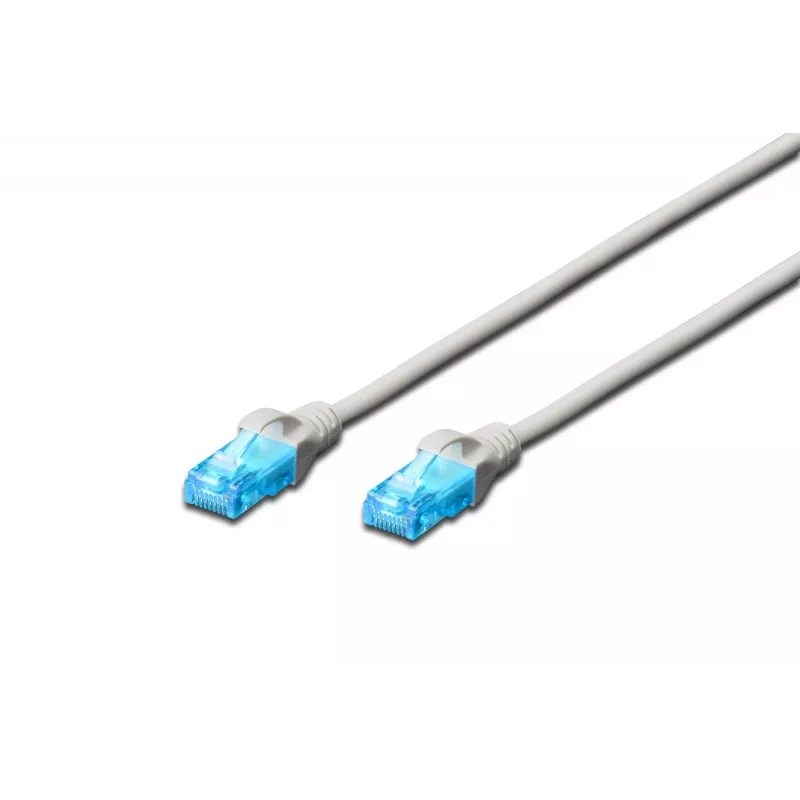

The DIGITUS Patch cord CAT 5e U/UTP DK-1511-020 is a 2 m network cable designed for reliable data transmission up to Category 5e (100 MHz). The cable uses copper conductors and RJ-45 connectors with a transparent blue plug for easy identification of the Category 5e rating. The grey U/UTP cord is PoE ready and manufactured to meet ISO/IEC 11801 and DIN EN 50173 Category 5e specifications.

Advantages

This patch cord is tested up to 100 MHz, including performance parameters such as near-end crosstalk (NEXT). It features molded boots with kink protection, strain relief and a latch protection that helps prevent the connector clip from breaking. Copper conductors and copper-plated RJ-45 contacts ensure consistent signal transmission and durability for everyday networking use.

Suitable for

• Connecting computers, switches and routers in home and office networks
• Ethernet installations supporting 10/100/1000Base-T(X)
• Power over Ethernet (PoE) enabled devices

Key specifications

• Manufacturer: DIGITUS
• Model: DK-1511-020
• Category: Cat 5e (Class D), 100 MHz
• Cabling type: U/UTP
• Length: 2 m
• Connectors: RJ-45 – RJ-45
• Conductor material: Copper (Cu)
• Color: Grey (transparent blue plug)
• Standards: ISO/IEC 11801, DIN EN 50173
• EAN: 4016032212140

How to use

Insert the RJ-45 connectors into the corresponding Ethernet ports on devices such as computers, switches or routers until the latch clicks into place. Ensure the molded boot and strain relief are not bent sharply at the connector to avoid damage. For removal, depress the latch protection and gently pull the connector straight out from the port.

Recommendations

For best performance, avoid running the cable in parallel with high-voltage power lines and keep bend radius within the manufacturer’s recommendations. Use this Cat 5e patch cord for Ethernet links up to 100 MHz and for PoE applications where Cat 5e performance is sufficient.
