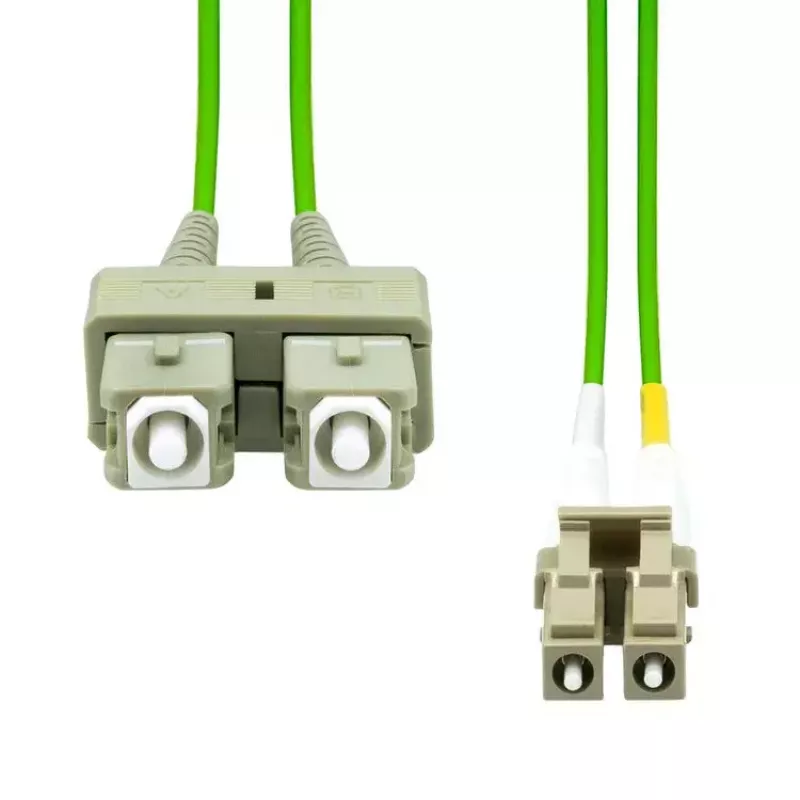

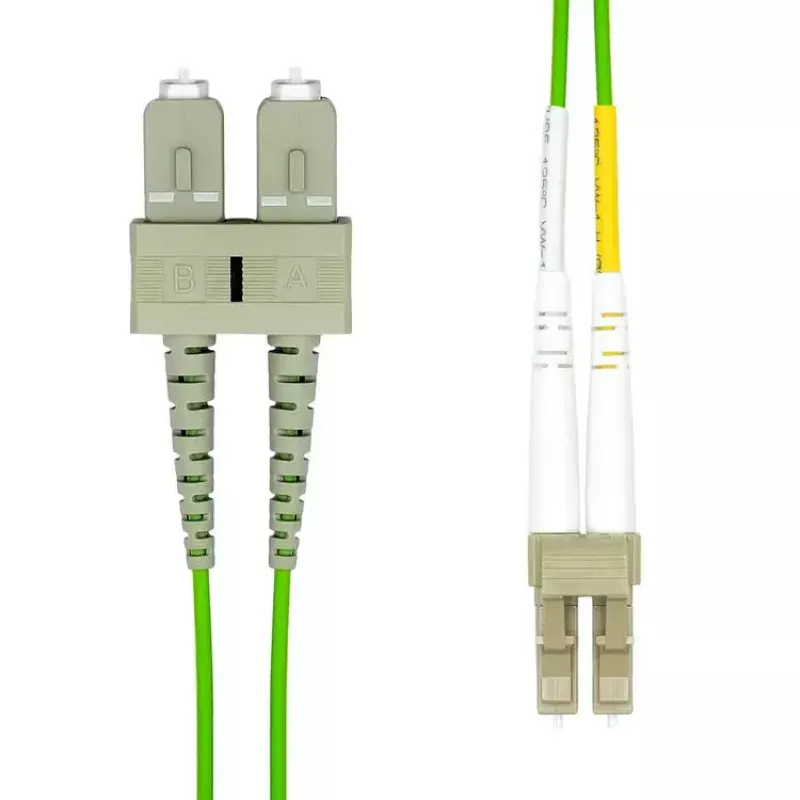

ProXtend LC-SC UPC OM5 duplex-MM-glasvezelkabel, 10 m

The ProXtend LC-SC UPC OM5 Duplex MM 10M fiber cable is a 10-metre multimode patch cable designed for high-speed, long-distance data transmission. It has a 50 µm glass core and LSZH (Low Smoke Zero Halogen) outer jacket, supports full-duplex communication with LC to SC UPC connectors, and is rated for operation in temperatures from -20 °C to 70 °C.

Advantages

The ProXtend OM5 duplex cable provides stable multimode performance with a 50 µm core and UPC-polished LC and SC male connectors for low-loss connections. The LSZH jacket reduces hazardous smoke in enclosed environments, and the cable’s temperature tolerance makes it suitable for a range of indoor and controlled-outdoor installations. The 10 m length offers flexibility for server rooms, distribution panels, and rack-to-rack links.

Suitable for

• High-speed LAN links and backbone connections
• Server room and data centre patching
• Rack-to-rack and equipment-to-distribution-frame connections
• Multimode optical systems requiring OM5 performance

Key specifications

• Brand: ProXtend
• Model/MPN: FO-LCSCOM5D-010
• EAN: 5714590017328
• Type: Duplex multimode patch cable (MM)
• Length: 10 m
• Core diameter: 50 µm (OM5)
• Connectors: LC (female/male mating style) to SC UPC (male) — UPC polished
• Jacket: LSZH
• Operating temperature: -20 °C to 70 °C

How to use

Route the cable between LC and SC ports ensuring connector orientation matches the transceiver or patch panel ports. Insert connectors until they click or seat fully, and avoid sharp bends — maintain the manufacturer’s minimum bend radius. For duplex communication, ensure correct pairing of transmit and receive channels. Inspect connectors for contamination before mating and use dust caps when not in use.

Recommendations

For optimal performance, keep fiber connectors clean, support the cable to prevent strain, and avoid tight bends. Use the cable indoors or in controlled environments per LSZH guidelines and verify compatibility with existing multimode OM5 equipment and transceivers before installation.
