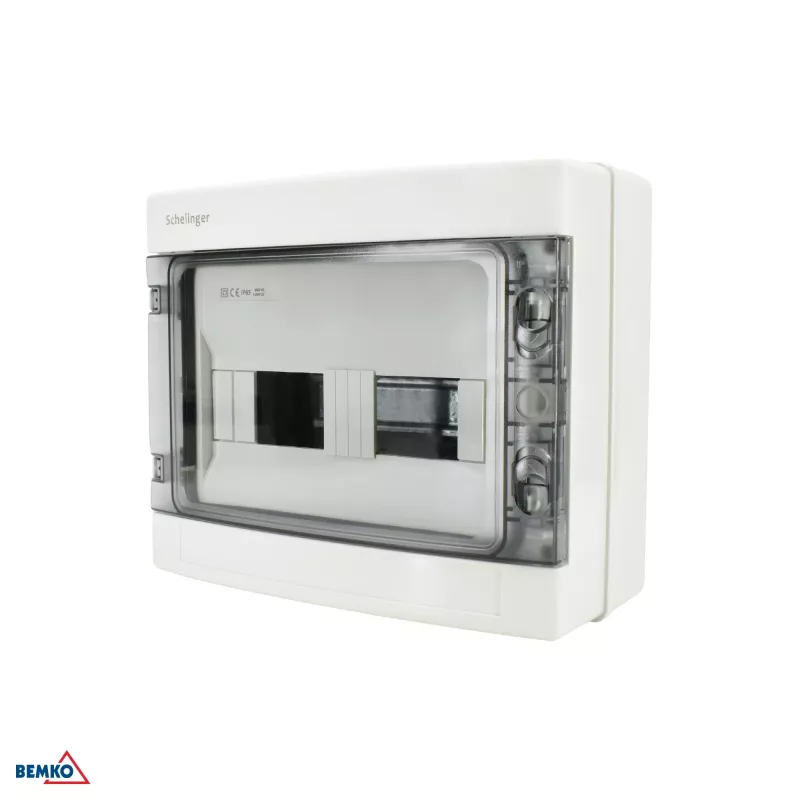

SCHELINGER A80-RHN-IP65-NPE-12P opbouw hermetische verdeler IP65 12N+12PE 1x12P

The SCHELINGER A80-RHN-IP65-NPE-12P is a high-quality surface-mounted hermetic distribution board designed for demanding environments. With an IP65 protection rating, it offers excellent resistance to dust and water ingress, making it suitable for outdoor and industrial applications. The enclosure is made of durable ABS with a transparent polycarbonate door, providing clear visibility of the internal components. This distribution board comes pre-equipped with 12 neutral and 12 protective earth terminals, ensuring safe and organized wiring.

Advantages

Robust IP65 protection ensures reliable operation in harsh conditions. The transparent door allows for easy inspection without opening the enclosure. Pre-installed terminal blocks save installation time and ensure secure connections. The smooth cable entry walls allow for custom gland placement, offering flexibility in cable management.

Suitable for

• Outdoor electrical installations
• Industrial environments requiring dust and water protection
• Commercial buildings where surface mounting is preferred
• Applications needing multiple neutral and earth terminals

Key specifications

• Installation Type: Surface-mounted
• Protection Rating: IP65
• Number of Modules: 12
• Number of Rows: 1
• Terminal Blocks: 12N + 12PE
• Enclosure Material: ABS
• Door Material: Polycarbonate (transparent)
• Colour: Grey (RAL 7035)
• Rated Insulation Voltage: 500 V
• Rated Current: 63 A
• Glow Wire Test: 650 °C
• Impact Resistance: IK08
• Operating Temperature: -25°C to +60°C
• Standards: EN 62208

Recommendations

For optimal performance, use appropriate cable glands for the cable entry points. Ensure the distribution board is installed by a qualified electrician in compliance with local regulations.
