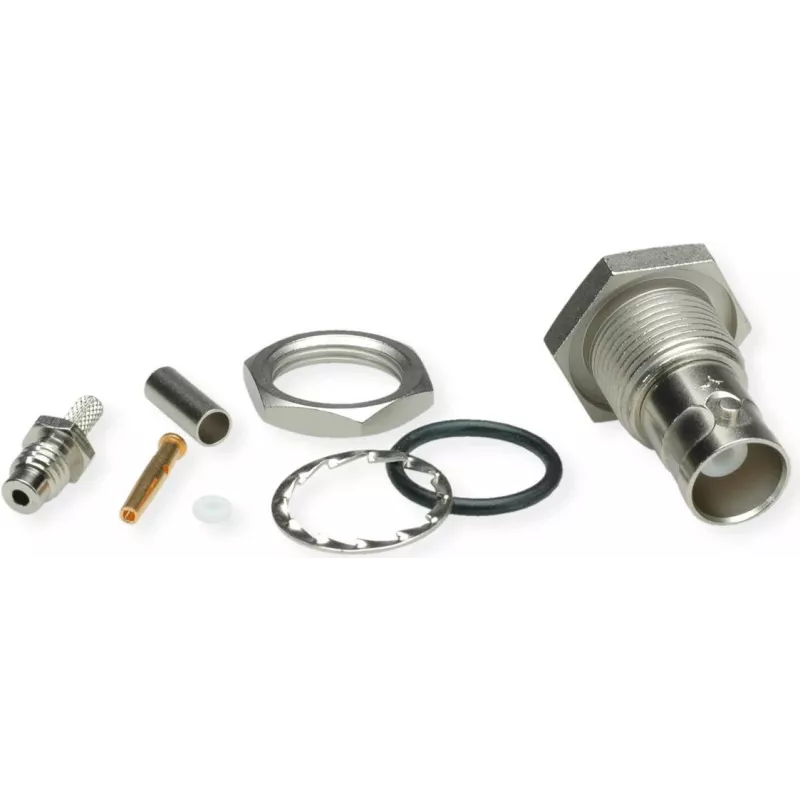

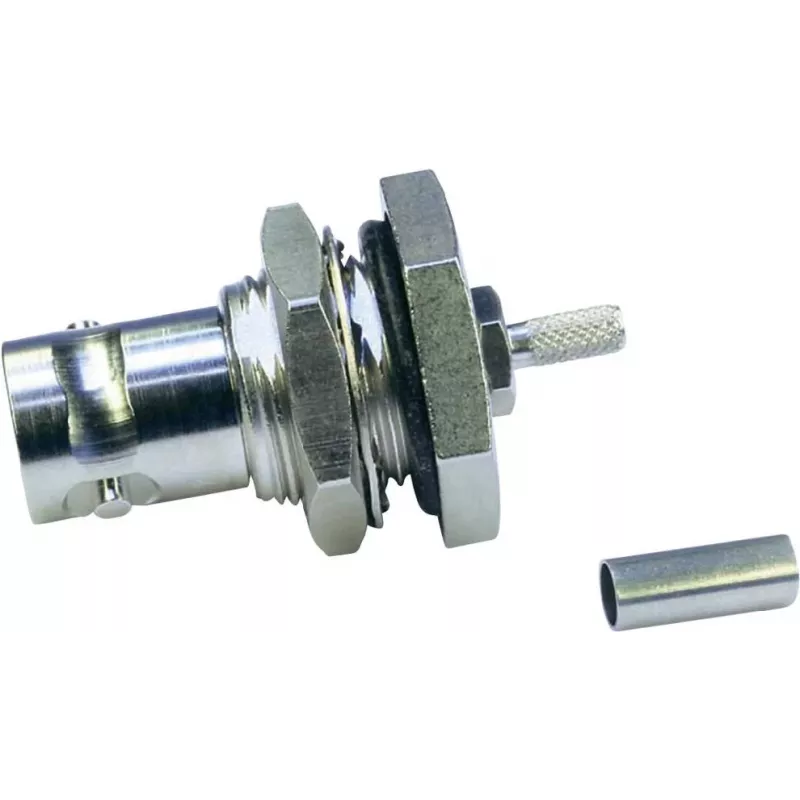

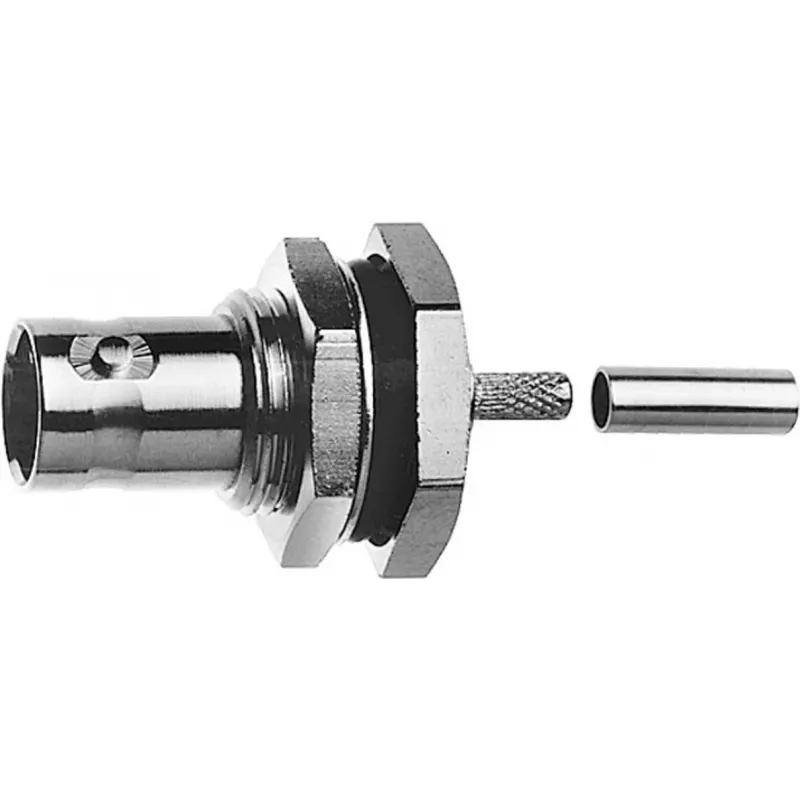

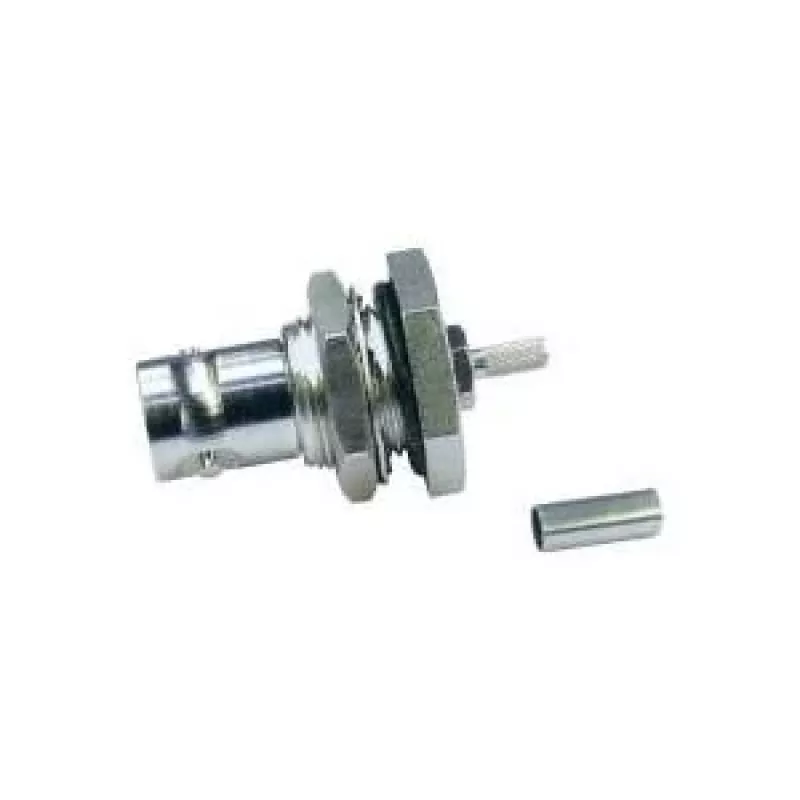

Telegärtner BNC-inbouwbus crimp/crimp 50 Ohm voor RG-316/U, nikkel/goud

For RF technicians and installers terminating RG-316/U coaxial cable in tight panel spaces, this BNC bulkhead jack provides a secure 50-ohm connection with crimp termination on both center and outer contacts. The nickel-plated brass body and gold-plated beryllium copper center contact ensure reliable signal integrity up to 4 GHz.

Key specifications

• Connector type: BNC jack (female), bulkhead mount
• Impedance: 50 Ohm
• Termination: crimp/crimp for RG-316/U (group G07)
• Body: brass, nickel-plated; center contact: beryllium copper, gold-plated
• Frequency range: DC to 4 GHz; VSWR ≤ 1.25 @ 3 GHz
• Voltage rating: 500 V RMS; operating temperature: -40°C to +85°C
• Packaging unit: 1 piece

Why choose it

The crimp/crimp design allows fast, repeatable field assembly without soldering, while the bulkhead mount fits panels up to 4 mm thick. PTFE insulation maintains stable impedance across the full temperature range.

Ideal use cases

• RF test setups and laboratory instrumentation
• Panel-mounted antenna feeds and broadcast equipment
• Industrial data links using RG-316/U cable

Good to know

Compatible with standard BNC plugs. The manufacturer internal code is A2903.
