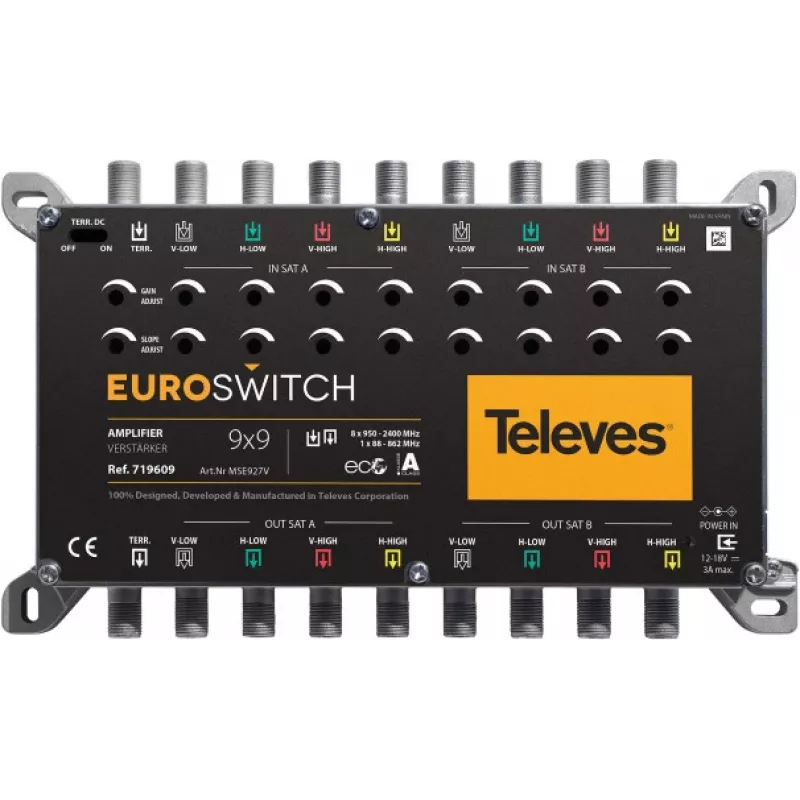

TELEVES EuroSwitch 9 ingangen multiswitch-versterker 27/31 dB (719609)

The TELEVES EuroSwitch 719609 is a high-performance multiswitch amplifier designed for distributing satellite and terrestrial TV signals to multiple users. With 9 inputs (8 satellite, 1 terrestrial) and 9 outputs, it provides reliable signal amplification and distribution for small to medium installations. The unit features a satellite gain of 27 dB and terrestrial gain of 31 dB, ensuring strong signal levels even over longer cable runs.

Advantages

This multiswitch amplifier offers excellent signal isolation between satellite and terrestrial paths (>30 dB), minimizing interference. Its internal power supply (230V AC) simplifies installation, and the F-type connectors ensure secure, low-loss connections. The unit supports DiSEqC 1.0 and 22kHz tone switching for LNB control.

Suitable for

• Single-family homes with multiple TV outlets
• Small apartment buildings requiring shared satellite and terrestrial distribution
• Upgrading existing single-switch systems to support more users

Key specifications

• Product Type: Multiswitch Amplifier
• Inputs: 9 (8 Satellite, 1 Terrestrial)
• Outputs: 9
• Satellite Frequency Range: 950-2150 MHz
• Terrestrial Frequency Range: 47-862 MHz
• Satellite Gain: 27 dB
• Terrestrial Gain: 31 dB
• Satellite Output Level (IMD3 -35dB): 110 dBµV
• Terrestrial Output Level (IMD3 -60dB): 110 dBµV
• Connectors: F-type
• LNB Power Supply: 13V/18V, 22kHz, DiSEqC 1.0
• Power Supply: 230V AC, 50/60Hz (Internal)
• Power Consumption: 15 W max
• Isolation (SAT-SAT): >30 dB
• Isolation (SAT-TER): >30 dB
• Return Loss: >10 dB

Recommendations

For optimal performance, use high-quality F-type connectors and RG6 or equivalent coaxial cable. Ensure the power supply is connected to a grounded outlet. This unit is ideal for expanding your TV distribution system with minimal signal loss.
