TRITON RAB-UP-950-H4 19 inch heavy-duty plank, 1U, 950mm diep, 150kg draagvermogen, zwart

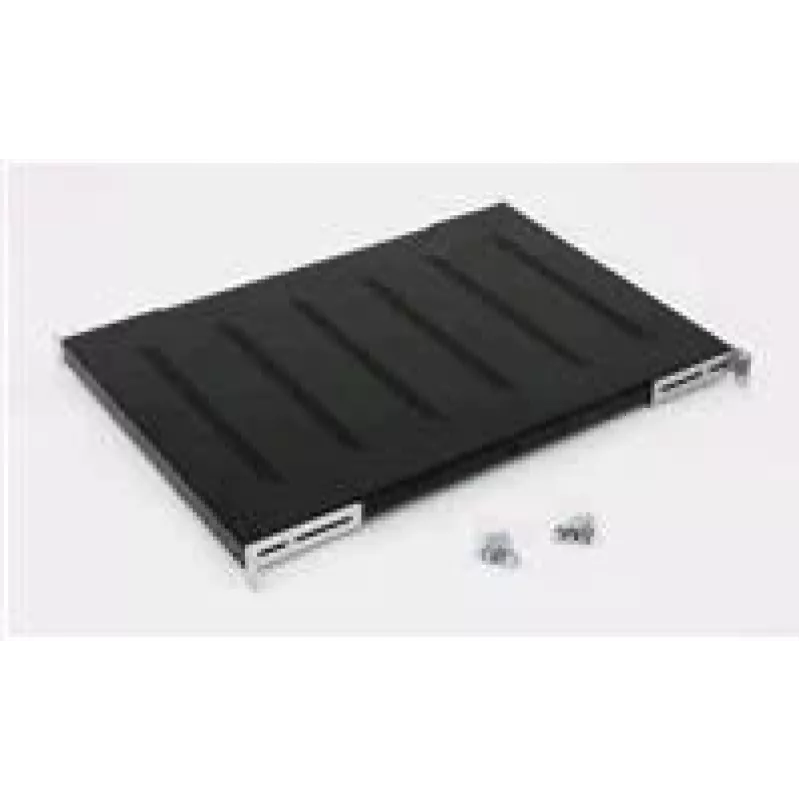

The TRITON RAB-UP-950-H4 is a robust 19-inch heavy-duty shelf designed for professional server racks and network cabinets. With a depth of 950mm and a load capacity of 150kg, it provides reliable support for non-rackmount equipment such as servers, UPS units, KVMs, and other heavy devices. The shelf features a solid, non-ventilated steel construction with a powder-coated black finish, ensuring durability and a sleek appearance. It mounts at four points (front and rear) using the included M6 screws and cage nuts, offering stable installation. This 1U shelf is compliant with IEC 60297 standards and is part of the TRITON RAB-UP series, making it an ideal choice for data centers, server rooms, and industrial environments.

Advantages

High load capacity of 150kg supports heavy equipment securely. The 950mm depth accommodates deep devices, while the 4-point mounting ensures stability. Powder-coated steel construction provides long-lasting durability. Easy screw-in installation with included hardware saves time and effort.

Suitable for

• Supporting non-rackmount servers, UPS systems, KVMs, and network equipment
• Use in 19-inch server racks and network cabinets
• Data centers, server rooms, and industrial applications requiring heavy-duty shelving

Key specifications

• Rack Size: 19 inch
• Height: 1U
• Depth: 950 mm
• Load Capacity: 150 kg
• Colour: Black
• Material: Steel
• Finish: Powder Coated
• Mounting: 4-point (Front and Rear)
• Ventilation: Solid (Non-ventilated)
• Mounting Hardware: Included (M6 screws and cage nuts)
• Standard Compliance: IEC 60297
• Product Series: RAB-UP

Recommendations

For optimal performance, ensure the rack rails are properly aligned and the shelf is securely fastened at all four mounting points. Verify that the total weight of equipment does not exceed 150kg. This shelf is ideal for deep racks (950mm depth) and provides a stable platform for heavy devices.
