Noodstroomvoeding UPS Armac H/1500F/LED

The Armac H/1500F/LED Line-Interactive UPS is a compact uninterruptible power supply with 1.5 kVA output capacity and a sine-wave output. Designed for home and small office use, it features 4 Type F AC outlets, a 12 V 9 Ah battery (typical backup time ~3 minutes at full load), an LED display for status monitoring and a small footprint (97 mm × 315 mm × 142 mm). The UPS provides automatic start after mains recovery and charges the battery while in standby.

Advantages

The UPS uses a built-in CPU to monitor and stabilise voltage, protecting connected equipment from voltage fluctuations, spikes, drops and overloads. It includes surge protection for network lines via two RJ-45 ports, an extra USB port for additional control and parameterisation, and quieter operation mode to mute non-critical sounds during battery operation. Dedicated PowerManager software enables real-time remote monitoring, event logging and controlled shutdown of protected devices.

Suitable for

• Home and small office computers and workstations
• Laptops, routers and switches
• Televisions and game consoles
• Small network devices requiring surge protection via RJ-45

Key specifications

• Output power capacity: 1.5 kVA
• Battery: 12 V, 9 Ah (typical backup ~3 minutes at full load)
• Output waveform: sine wave
• AC outlets: 4 × Type F
• Dimensions (W×D×H): 97 × 315 × 142 mm
• Weight: 1.5 kg
• Display: LED

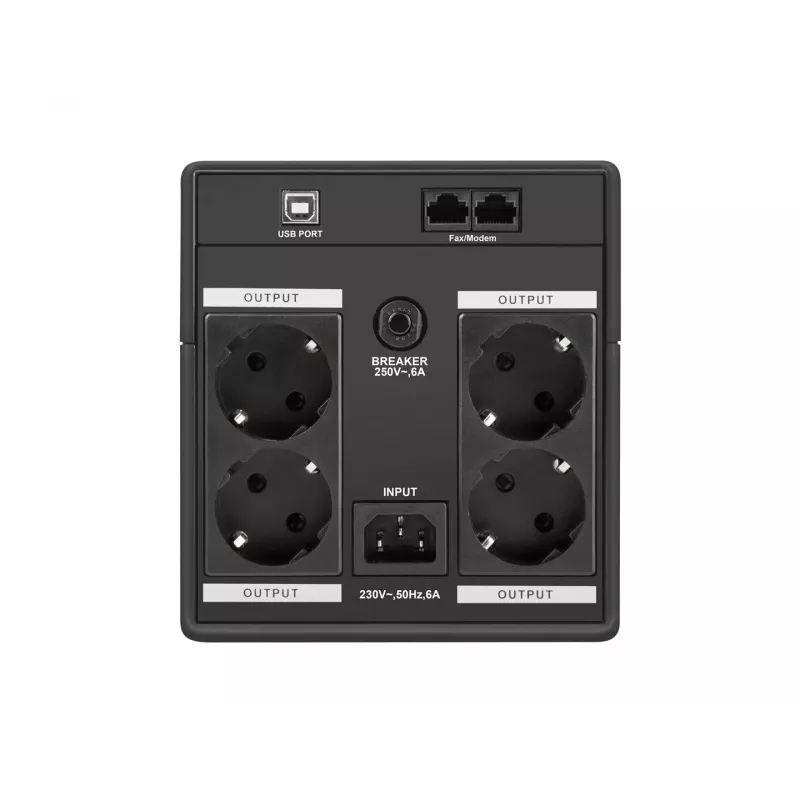

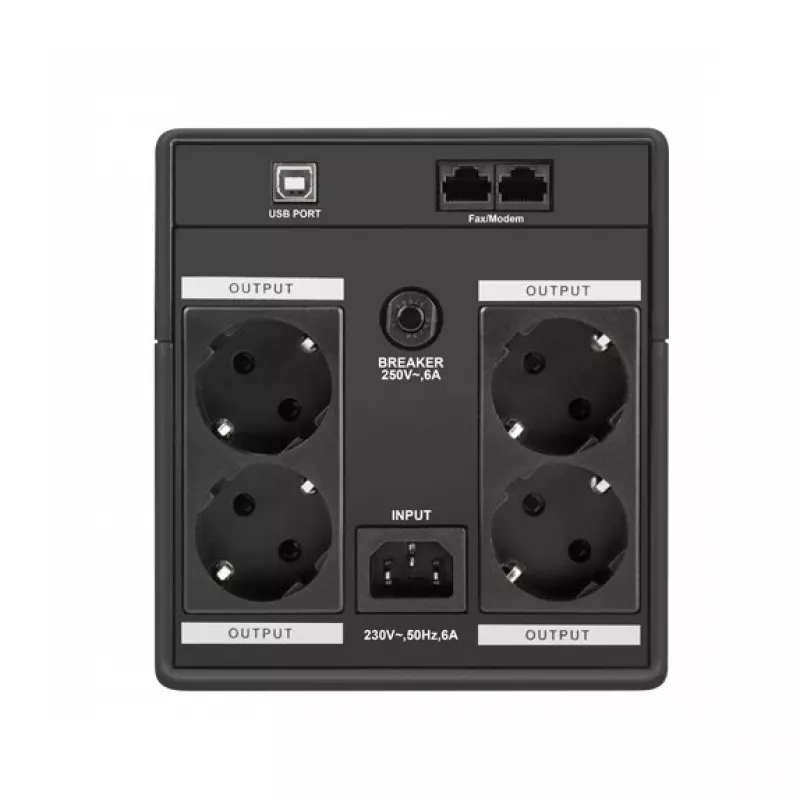

• Ports: USB, 2 × RJ-45 (surge protection for network/telephone lines)
• Colour: Black

How to use

Connect the UPS to a grounded mains outlet and plug your sensitive devices into the 4 Type F outlets. Use the USB port to connect to a computer if you require parameterisation or integration with the PowerManager software. If protecting a network or phone line, route the line through the RJ-45 ports. The UPS will charge the battery in standby mode and automatically switch to battery supply when mains fail; it will restart automatically when mains power is restored.

Recommendations

The UPS is suitable for protecting single workstations, small entertainment setups and network equipment; avoid exceeding the rated 1.5 kVA load and perform periodic battery checks and replacements according to usage and manufacturer guidance.
