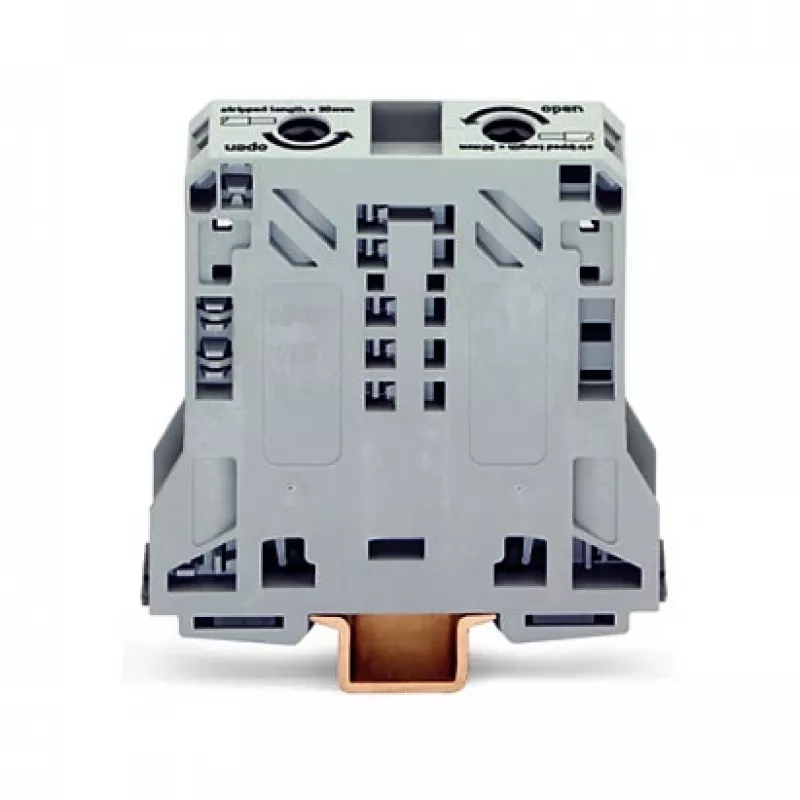

WAGO 285-150 CAGE CLAMP power-klemmenblok, 1-potentiaal, 2 aansluitingen, 10-50 mm², grijs, DIN-rail 35

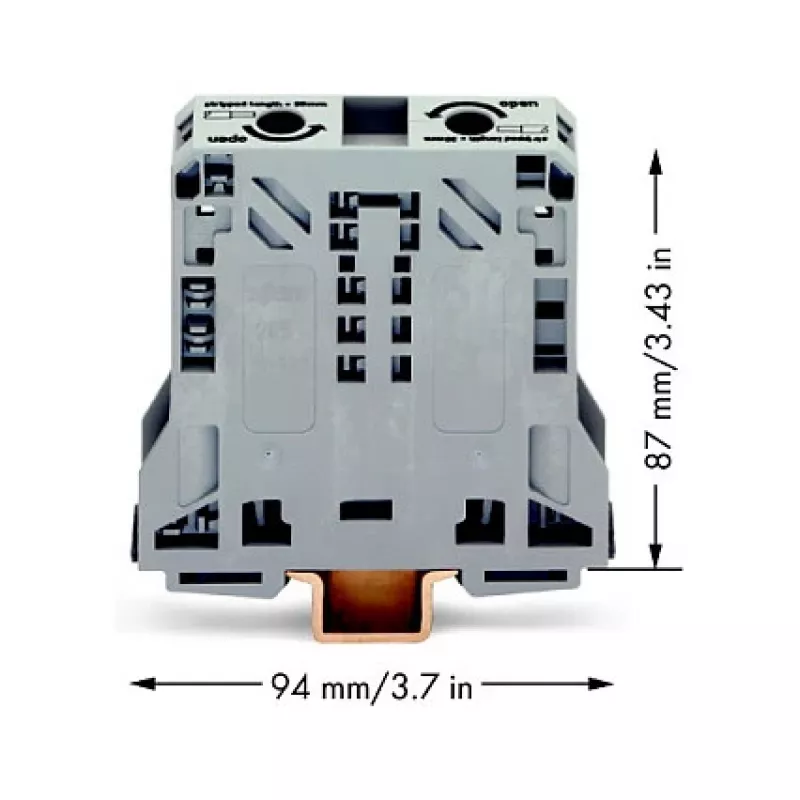

The WAGO 285-150 is a high-performance CAGE CLAMP® Power terminal block designed for reliable and secure electrical connections in demanding industrial environments. With a rated voltage of 1000 V and a rated current of 150 A, this terminal block is ideal for power distribution and control applications. Its compact dimensions (20 mm width, 94 mm height, 87 mm depth) save valuable space on DIN-rail 35.

Advantages

• CAGE CLAMP® Power connection technology ensures fast, vibration-proof, and maintenance-free wiring.
• Accepts conductors from 10 to 50 mm² (solid/stranded) and 16 to 50 mm² (fine-stranded), covering a wide range of wire sizes.
• Rated impulse voltage of 8 kV and pollution degree 3 provide robust performance in harsh conditions.
• Polyamide (PA 66) insulation material with UL94 V-0 flammability rating ensures high safety.
• Side-entry wiring simplifies installation and reduces bending stress on conductors.

Suitable for

• Power distribution panels
• Control cabinets
• Industrial automation systems
• Energy supply networks

Key specifications

• Number of Potentials: 1
• Number of Connection Points: 2
• Connection Technology: CAGE CLAMP® Power
• Conductor Size (Solid/Stranded): 10 - 50 mm² (8 - 1/0 AWG)
• Conductor Size (Fine-Stranded): 16 - 50 mm² (6 - 1/0 AWG)
• Rated Voltage (EN): 1000 V
• Rated Current (EN): 150 A
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Insulation Material: Polyamide (PA 66)
• Color: Gray
• Mounting Type: DIN-rail 35
• Operating Temperature: -35 ... +85 °C
• Stripping Length: 28 - 30 mm
• Wiring Type: Side-entry
• Number of Levels: 1
• Flammability Rating: UL94 V-0
• Approvals: UL, CSA, VDE, GL

Recommendations

For optimal performance, use with WAGO marking accessories and appropriate end brackets. Ensure proper stripping length (28-30 mm) and torque settings as per manufacturer guidelines.
