ACT 20 meter LSZH Multimode 62.5/125 OM1 glasvezel-patchkabel duplex met LC- en SC-stekkers

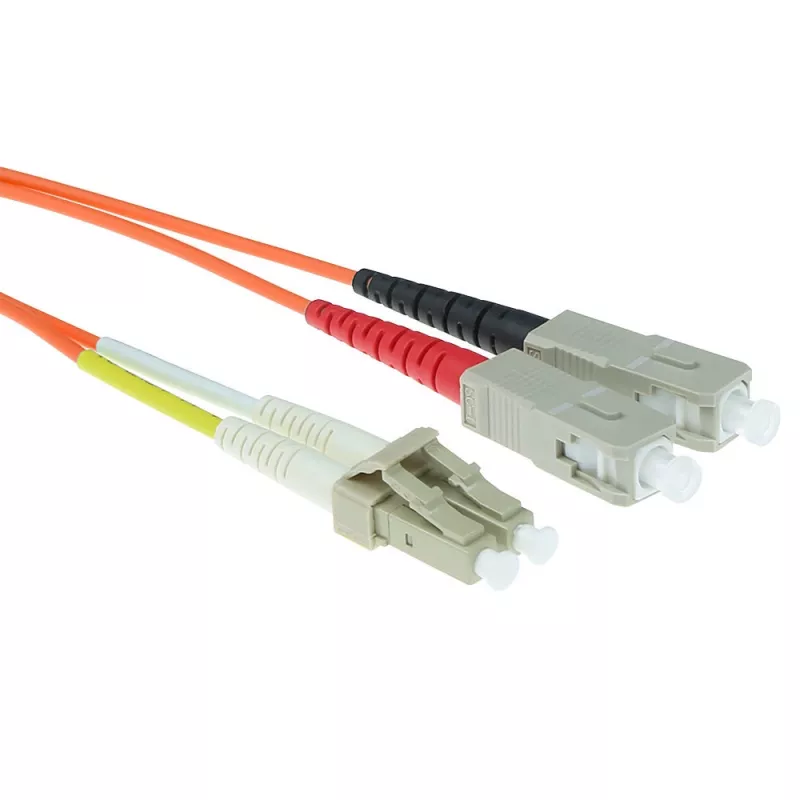

Fiber Patch Cable ACT 20 meter LSZH Multimode 62.5/125 OM1 is a duplex multimode fiber patch cable with LC to SC connectors and a 20 m length. The cable uses OM1 62.5/125 µm fiber and an LSZH (Low Smoke Zero Halogen) jacket, designed for structured cabling and short-range high-speed data transmission in multimode networks while reducing toxic smoke emission in the event of a fire.

Advantages

The duplex design with LC and SC connectors provides compatibility with a wide range of networking equipment. The OM1 62.5/125 fiber supports legacy multimode applications. The LSZH outer jacket lowers smoke and halogen emissions for safer use in enclosed spaces. A 20 meter length offers flexibility for installations without additional splicing.

Suitable for

• Data centers and telecom closets for short-range multimode links
• Office and enterprise LAN fiber runs
• Connections between LC and SC patch panels or devices

Key specifications

• Brand: ACT
• Model / MPN: RL8020
• EAN: 8716065224436
• Type: Multimode patch cable, duplex
• Fiber: OM1, 62.5/125 µm
• Connectors: LC to SC
• Length: 20 m
• Jacket: LSZH (Low Smoke Zero Halogen)

How to use

Route the ACT 20 m multimode cable between the two desired connection points, avoiding sharp bends and excessive pulling tension. Insert the LC connector into the LC port and the SC connector into the SC port until each connector clicks into place. Verify link integrity and signal levels using appropriate fiber testing equipment after installation.

Recommendations

Store and install the cable in dry, dust-free conditions; maintain minimum bend radius as specified for 62.5/125 multimode fiber and avoid tight bends or crushing to preserve optical performance.
