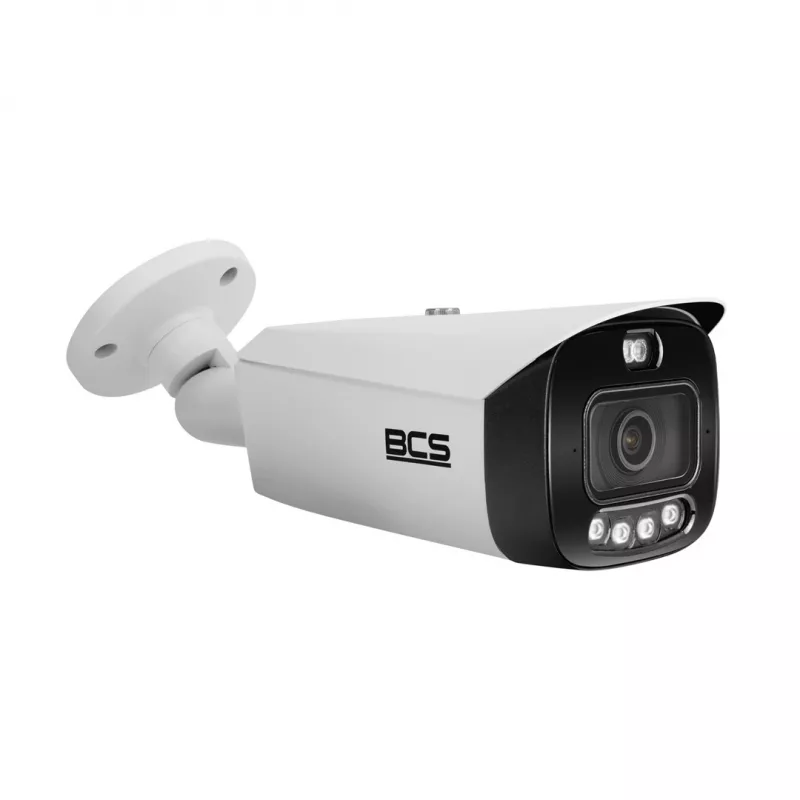

BCS-L-TIP66FCR5L5-Ai1 6MP IP bullet camera met AI, 2,8mm, IR 50m, PoE

The BCS-L-TIP66FCR5L5-Ai1 is a high-performance 6-megapixel IP bullet camera designed for professional surveillance. Featuring advanced AI capabilities such as perimeter protection, face detection, and SMD Plus, this camera delivers intelligent monitoring with minimal false alarms. With a 2.8mm fixed lens providing a 105° horizontal field of view, it is ideal for wide-area coverage. The camera supports H.265+ compression for efficient bandwidth and storage, and includes a built-in microphone for audio recording. Its IP67-rated housing ensures reliable operation in harsh outdoor conditions, while Smart IR technology provides up to 50m of night vision.

Advantages

This camera offers exceptional image quality with 6MP resolution and 120dB true WDR, ensuring clear footage even in challenging lighting. The AI-powered analytics reduce false alerts by distinguishing humans and vehicles from other objects. Easy installation is supported by PoE (802.3af) and a microSD slot for local storage up to 256GB.

Suitable for

• Perimeter surveillance of commercial and residential properties
• Parking lots, warehouses, and retail stores
• Outdoor areas requiring robust weather resistance

Key specifications

• Image Sensor: 1/2.8" 6MP Progressive Scan CMOS
• Max Resolution: 3072x2048 at 20fps
• Lens: 2.8mm fixed, F1.6
• Horizontal Angle: 105°
• IR Range: 50m (Smart IR)
• Min Illumination: 0.005 Lux (color), 0 Lux (IR on)
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio: Built-in microphone
• Storage: microSD slot (max 256GB)
• Network: 1x RJ-45 10/100Mbps
• Power: 12V DC, PoE (802.3af), max 6.5W
• Ingress Protection: IP67
• Operating Temperature: -40°C to +60°C
• AI Features: Perimeter protection, SMD Plus, face detection
• WDR: 120dB
• Noise Reduction: 3D DNR

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the microSD card is high endurance for continuous recording. The camera is compatible with BCS NVRs and third-party systems supporting ONVIF.
