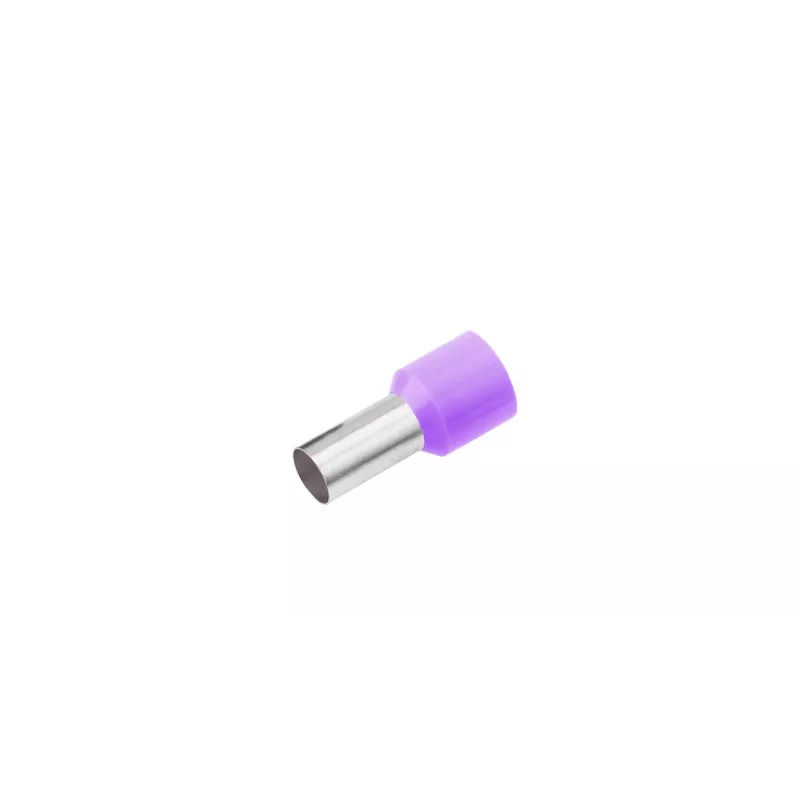

Cimco 187103 adereindhuls 0,25 mm² halfgeïsoleerd violet (100 st.)

Precision-engineered for fine-stranded conductors, the Cimco 187103 wire end sleeve offers a 0.25 mm² nominal cross-section with a violet polypropylene insulation collar. Each pack contains 100 tin-plated electrolytic copper ferrules, compliant with DIN 46228 Part 4.

Overview

These partially insulated wire end sleeves are designed for reliable crimp connections in electrical installations. The metal sleeve measures 6 mm in length, with a total length of 8 mm including the insulation collar. The inner diameter is 0.8 mm and the outer diameter is 1.2 mm, accommodating fine-stranded conductors up to AWG 24.

What stands out

• Tin-plated electrolytic copper ensures excellent conductivity and corrosion resistance.
• Polypropylene insulation collar provides strain relief and protection, with a temperature range of -40°C to +105°C.
• Colour-coded violet for quick identification of 0.25 mm² cross-section.
• Conforms to DIN 46228 Part 4, ensuring compatibility with standard crimping tools.

Technical details

• Product type: Wire end sleeve (ferrule)
• Insulation type: Partially insulated
• Nominal cross-section: 0.25 mm²
• Colour: Violet
• Quantity per pack: 100 pieces
• Conductor material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Standard compliance: DIN 46228 Part 4
• Wire gauge equivalent: AWG 24
• Sleeve length (metal part): 6 mm
• Total length (including insulation): 8 mm
• Inner diameter (sleeve): 0.8 mm
• Outer diameter (sleeve): 1.2 mm
• Insulation collar diameter: 2.5 mm
• Temperature range (insulation): -40°C to +105°C
• Application: For fine-stranded conductors
• Connection method: Crimp

Our verdict

A dependable choice for professionals requiring precise, colour-coded ferrules for fine-stranded wiring. The tin-plated copper construction and DIN compliance ensure secure, long-lasting crimp connections.
