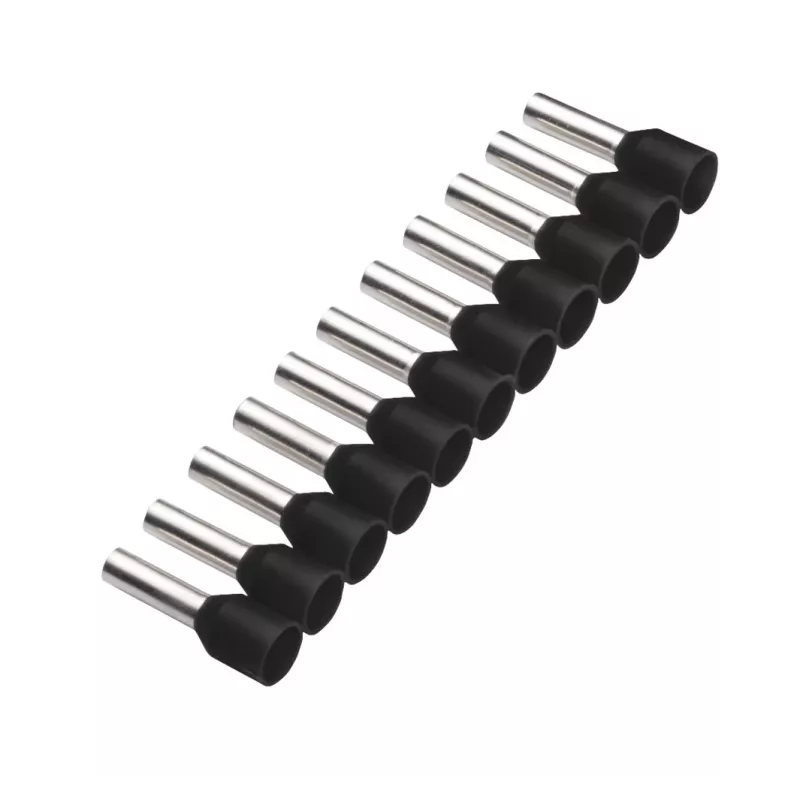

Cimco 187503 Deels geïsoleerde adereindhuls, 1,5 mm², zwart, 500 stuks

Terminating fine-stranded conductors in control cabinets and junction boxes requires a reliable, gas-tight connection. The Cimco 187503 partially insulated wire ferrule provides exactly that for 1.5 mm² conductors, with a black polypropylene collar for phase identification and a funnel-shaped entry for fast, snag-free insertion.

Who is it for

Electricians, panel builders, and machine manufacturers who need consistent, standards-compliant terminations in volume. The 500-piece pack reduces reordering frequency and keeps production moving.

Main features

• Partially insulated design with black collar for conductor colour coding
• Electrolytic copper, tin-plated for corrosion resistance and low contact resistance
• Funnel-shaped entry guides fine-stranded wires without strand folding
• Polypropylene insulation, halogen-free, temperature range -40°C to +105°C
• Conforms to DIN 46228 Part 4

Specifications

• Nominal cross-section: 1.5 mm²
• Insulation type: Partially insulated
• Insulation colour: Black
• Quantity per pack: 500 pieces
• Ferrule material: Electrolytic copper (E-Cu), tin-plated
• Metal sleeve length: 8 mm
• Total length with insulation: 14 mm
• Insulation material: Polypropylene (PP)
• Temperature range: -40°C to +105°C
• Voltage rating: 300 V
• Halogen-free: Yes
• Flammability rating: UL94 V-2

Tips

Use a matching crimping tool with a 1.5 mm² die to achieve a square, gas-tight crimp. The funnel entry is optimised for fine-stranded conductors; avoid using with solid wire.
