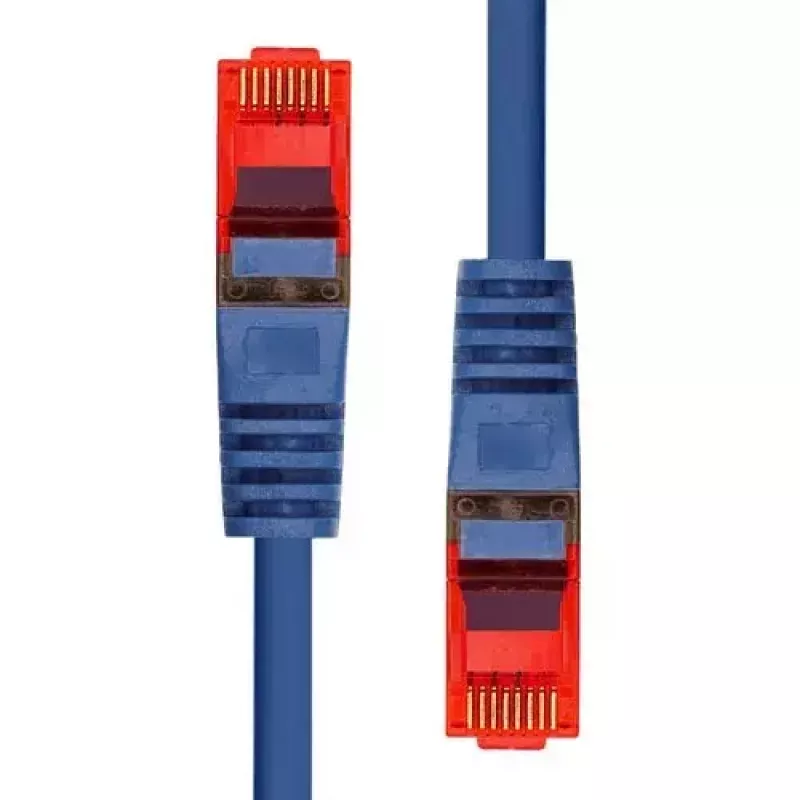

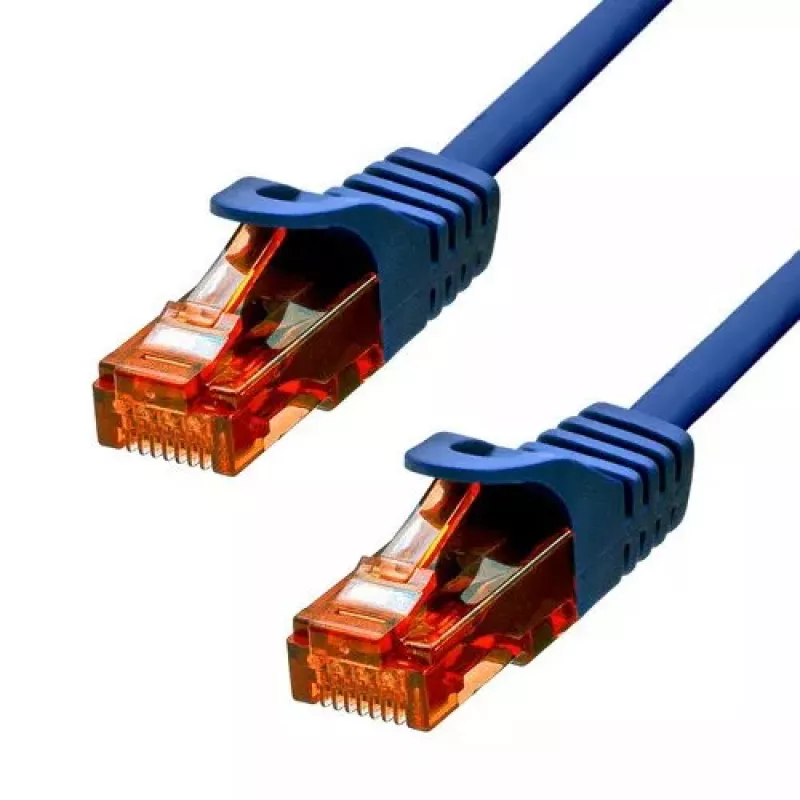

Ethernet-kabel ProXtend CAT6 RJ-45 0,75m blauw

The ProXtend CAT6 U/UTP CU LSZH Ethernet Cable (0.75 m) features RJ-45 connectors on both ends and is designed for reliable gigabit network connections. Constructed with 99.9% pure copper strands (24 AWG) and U/UTP cabling technology, the cable supports data transfer rates up to 1000 Mbit/s and is compatible with 10/100/1000Base-T(X) networks. The blue outer jacket is made from LSZH material to reduce smoke and toxic fumes in the event of fire, and the cable supports PoE+ for powered devices.

Advantages

The cable uses 99.9% pure copper conductors with 24 AWG for stable signal transmission and minimal attenuation. An LSZH outer jacket provides low smoke and zero halogen properties for safer use in confined spaces. Connectors are plated with 50µ"U gold for improved contact durability and enhanced signal quality; the cable includes strain relief and a snagless latch protector to reduce connector damage during installation.

Suitable for

• Wired gigabit LAN connections (desktop or switch-to-switch)
• PoE+ powered devices such as IP phones, access points, and cameras
• Short patch runs in offices, server rooms, and home networks (0.75 m length)

Key specifications

• Cable length: 0.75 m
• Connector type: RJ-45 to RJ-45
• Cabling technology: 10/100/1000Base-T(X)
• Conductor: 99.9% pure copper, 24 AWG
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector plating: 50µ"U gold
• Color: Blue
• Weight: 0.045 kg
• Supports: PoE+

How to use

Connect each RJ-45 plug to the corresponding network ports on your devices (for example, PC to switch, router to modem, or switch to access point). Ensure the connectors are fully inserted until the latch engages. For PoE+ devices, confirm that your switch or injector provides the required PoE+ power standard before connecting. Avoid sharp bends and excessive tension on the cable to maintain signal integrity and prolong service life.

Recommendations

For best performance, use this cable for short patch connections up to 0.75 m and keep it away from strong electromagnetic sources (power cables, transformers). When installing in plenum or public areas, verify LSZH compliance with local safety requirements.
