RACKTEL RL-6627SR 27U 600x600 Vrijstaande Kast voor Servers, Zwart

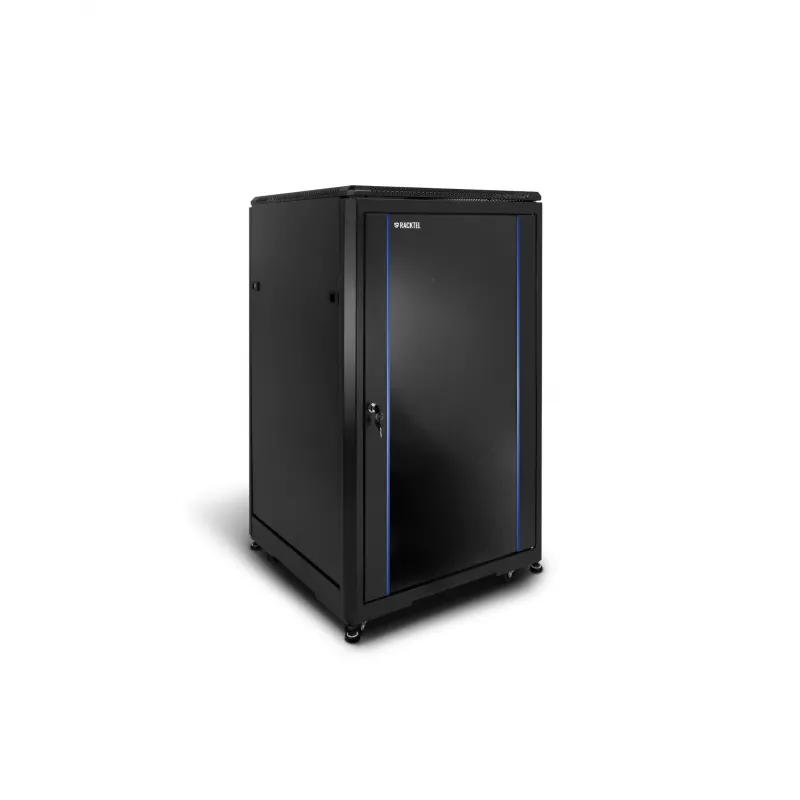

The RACKTEL RL-6627SR is a robust 27U floor standing server rack cabinet designed for secure and efficient housing of 19-inch network and server equipment. With external dimensions of 600x600 mm (WxD) and a height of 1350 mm, this cabinet offers ample space for your IT infrastructure while maintaining a compact footprint. It is supplied as a flat-pack for easy transportation and assembly.

Advantages

This rack cabinet combines durability, security, and flexibility. Constructed from SPCC cold rolled steel with a black RAL 9005 finish, it provides a static load capacity of up to 800 kg. The tempered glass front door with lock and solid steel rear door ensure equipment safety, while removable lockable side panels allow easy access. Adjustable leveling feet and heavy-duty castors provide stability and mobility.

Suitable for

• Data centers and server rooms requiring a 27U 19-inch rack
• Network equipment such as switches, patch panels, and routers
• Server and storage devices up to 800 kg total load
• Environments needing secure, lockable equipment housing

Key specifications

• Rack Units: 27U
• External Dimensions (WxDxH): 600 x 600 x 1350 mm
• Rack Standard: 19-inch
• Type: Floor Standing, Unassembled (Flat-pack)
• Material: SPCC Cold Rolled Steel
• Front Door: Tempered Glass with Lock
• Rear Door: Solid Steel with Lock
• Side Panels: Removable, Lockable
• Mounting Rails: 4 x Adjustable 19-inch Rails
• Static Load Capacity: 800 kg
• Cable Entry: Top and Bottom with Brush Strips
• Ventilation: Passive, with Fan Cutouts on Top Panel
• Color: Black (RAL 9005)
• Feet/Castors: Adjustable Leveling Feet and Heavy-Duty Castors
• Protection Class: IP20
• Surface Finish: Degreasing, Phosphoric, Spray Painting
• Compliance: CE, RoHS

Recommendations

For optimal cable management and airflow, use appropriate cable ties and blanking panels. Ensure the floor can support the total weight of the cabinet and installed equipment. Assembly requires two people and basic tools.
