USB-C bus keystone-module VivoLink PROKEYUSBCFM1W wit – inbouw connector module

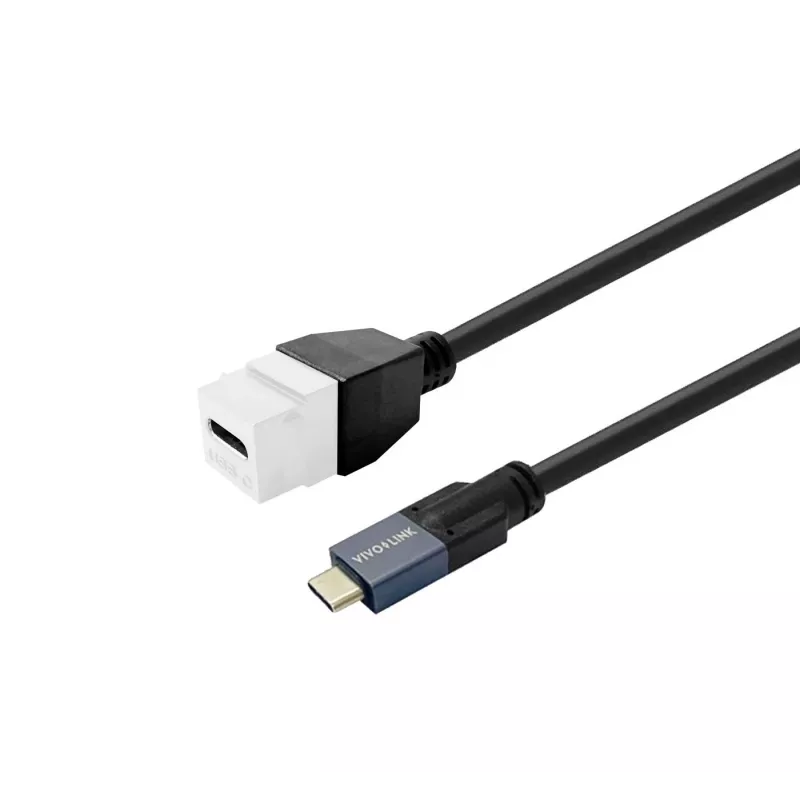

The VivoLink PROKEYUSBCFM1W white USB-C Female Keystone Module is a panel-mount connector module designed to fit standard keystone openings. It provides a USB-C female interface for integration into wall plates, patch panels, or custom enclosures, enabling a tidy, serviceable outlet for USB-C data and power connections. The module’s form factor allows quick replacement or upgrade without changing the surrounding plate or panel.

Advantages

This keystone USB-C female module offers a compact, standardized mounting solution that simplifies installation in residential, commercial, and AV environments. The white finish matches common wall plate colours for a discreet appearance. By using a keystone format, the module can be installed or removed independently of the panel, reducing maintenance time and allowing flexible reconfiguration of connection layouts.

Suitable for

• Wall plates and faceplates in offices, classrooms, and meeting rooms
• Patch panels and custom AV racks
• Built-in desk grommets or furniture mounting for convenient local charging and data access
• Replacement or upgrade of existing keystone openings to USB-C connectivity

Key specifications

• Connector type: USB-C female
• Mounting: standard keystone panel-mount module
• Finish: white
• Application: data and power interface integration into wall plates, patch panels, and enclosures

How to use

Insert the VivoLink USB-C keystone module into a compatible keystone opening on a wall plate, patch panel, or enclosure until it locks in place. Route the cable or wiring to the rear of the module according to the installation environment, ensuring that connected cables are compatible with the intended data and power requirements. For replacement, press the release tabs on the keystone module and remove it from the plate before installing a new module.

Recommendations

Use appropriate USB-C cables and power sources rated for the required data speeds and power delivery. Ensure the keystone opening and surrounding plate are compatible with standard keystone dimensions before installation. Avoid exposing the module to excessive moisture or mechanical stress during and after installation.
