VivoLink USB-C-naar-USB-C-kabel PROUSBCMMS9, USB-datakabel (MPN PROUSBCMMS9)

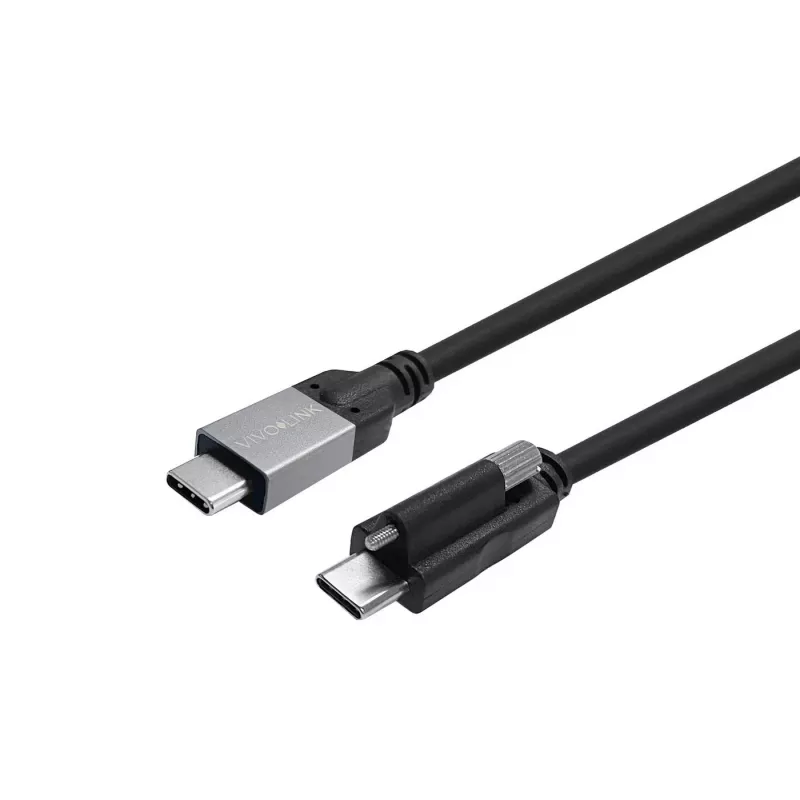

VivoLink PROUSBCMMS9 is a USB-C to USB-C cable with a screw-lock connector on one end and a standard USB-C connector on the other. It transmits video, audio, data and power between USB-C devices and includes an active booster inside the cable. The cable supports DisplayLink, DisplayPort 1.4, MST and Alt Mode for reliable high-resolution video and multi-stream transport.

Advantages

The cable supports high data throughput and power delivery in a single reversible connector, delivering up to 60 W charging and up to 10 Gbps data rates under typical configurations. A metal-housed USB-C connector with gold-plated contacts ensures stable contact, while the screw-lock at one end provides a secure mechanical connection. The built-in active booster maintains signal integrity for longer runs.

Suitable for

• Connecting USB-C laptops, tablets and smartphones for charging and data transfer
• Transmitting video from USB-C sources that support DisplayPort Alt Mode, DisplayPort 1.4 or DisplayLink
• Setups requiring a more secure connector where screw-lock prevents accidental disconnection

Key specifications

• Connector types: USB-C with screw lock (one end) and USB-C without screw lock (other end)
• Data support: up to 10 Gbps (typical) and compatible with USB2.0 data; supports DP Alt Mode, DisplayPort 1.4, DisplayLink and MST
• Video: supports up to 4K@60Hz from compatible sources
• Power delivery: up to 60 W charging (E-Marker chipset present)
• Cable design: 24-pin full feature configuration with multiple data lanes and an internal active booster
• Connector finish: metal housing with gold-plated contacts

How to use

Insert the screw-lock USB-C connector into the device that provides the locking port and secure it by tightening the screw mechanism; connect the other USB-C end to the target device. Ensure both connected devices support the required modes (for example DisplayPort Alt Mode for video) and observe device specifications for supported resolutions and power delivery. The cable is reversible so orientation of the USB-C plugs does not matter.

Recommendations

Use the cable with devices that explicitly support the stated video and power modes. For the best video performance, connect sources that support DisplayPort 1.4 or DisplayLink and confirm host and display compatibility. Avoid excessive bending near the connectors and do not overload beyond the 60 W power rating.
