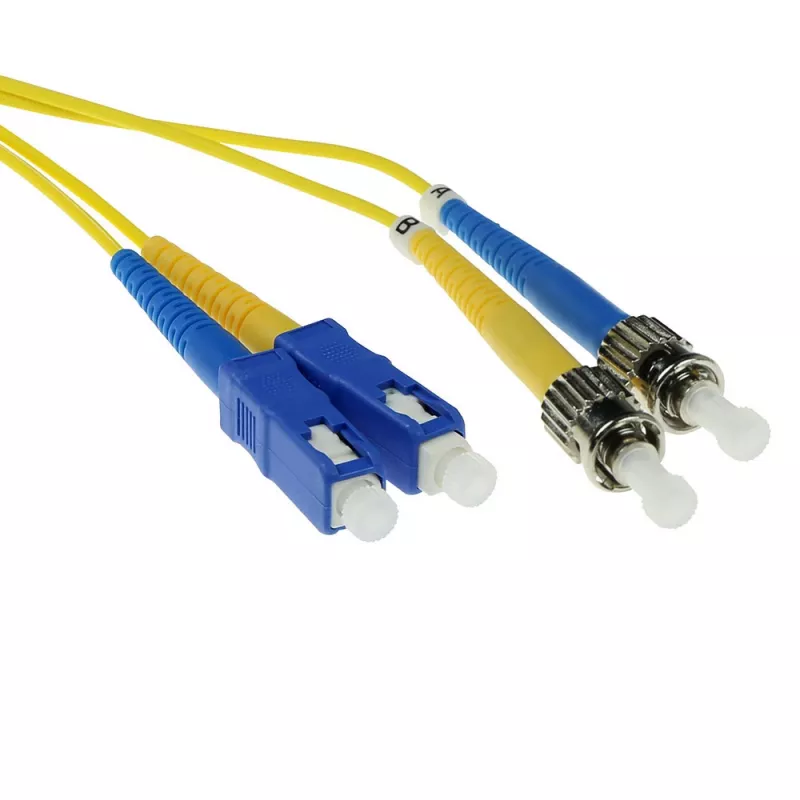

ACT 1,5 meter LSZH singlemode 9/125 OS2 glasvezel-patchkabel duplex met SC- en ST-stekkers

Duplex fiber patch cable with SC and ST connectors, yellow jacket and 9/125 µm singlemode cores. The cable consists of two 3 mm jackets and a PVC outer sheath, designed for high-quality optical signal transmission over short to medium distances. Length: 1.5 m. Intended for indoor network and telecom connections where a duplex SC–ST fiber link is required.

Advantages

The yellow duplex design and SC–ST connector combination provide clear color coding and flexible connectivity between devices with SC and ST ports. 9/125 µm singlemode cores ensure low attenuation and stable signal for singlemode networks. The robust PVC sheath offers mechanical protection for indoor installations.

Suitable for

• Connecting SC and ST ports in telecommunications
• Patch panels and fiber distribution frames
• Indoor data center and LAN connections

Key specifications

• Type: Duplex fiber patch cable
• Length: 1.5 m
• Connectors: SC (one end) – ST (other end)
• Core: 9/125 µm singlemode (OS1)
• Colour: Yellow
• Diameter: 2 × 3 mm
• Sheath: PVC
• Quality: High Quality

How to use

Align the SC connector with the SC port and insert until it clicks; align the ST connector with the ST port and insert while securing the bayonet coupling. Avoid bending the fiber beyond its minimum bend radius and keep connectors clean; use fiber cleaning tools if necessary. Route the cable to prevent sharp bends or crushing and secure it with appropriate cable management clips.

Recommendations

Use indoors in controlled environments; avoid outdoor exposure and direct sunlight. For applications requiring reduced smoke and halogen-free materials, consider an LSZH alternative if required by the installation.
