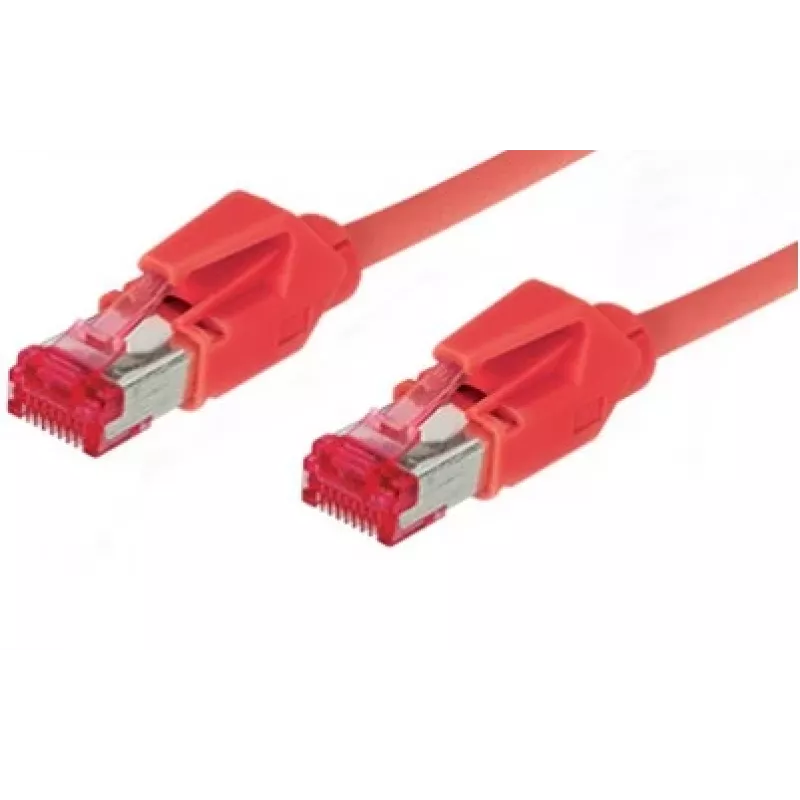

GoodConnections Cat. 6 S/FTP PiMF halogeenvrije patchkabel, Hirose RJ45, rood, 3m 8066-103R

Cat. 6 patch cable with S/FTP shielding and PiMF pair shielding delivers reliable 600 MHz performance for high-speed networks. The halogen-free LSZH jacket and gold-plated Hirose connectors ensure safety and durability in professional installations.

Advantages

Each twisted pair is individually wrapped in metal foil (PiMF) and the entire cable is shielded with braiding (S/FTP), providing excellent protection against electromagnetic interference and crosstalk. The halogen-free jacket emits low smoke and no toxic halogens in case of fire, making it suitable for public buildings and confined spaces. Gold-plated Hirose connectors resist corrosion and maintain stable contact for consistent signal integrity. Stranded copper conductors offer flexibility for easy routing in tight spaces.

Suitable for

• Gigabit Ethernet and 10 Gigabit Ethernet networks
• PoE, PoE+, and PoE++ applications
• Data centers and server rooms
• Office and industrial environments
• Areas requiring low smoke and halogen-free cabling

Key specifications

• Category: Cat. 6
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Individual pair shielding: PiMF (Pairs in Metal Foil)
• Frequency bandwidth: 600 MHz
• Length: 3 m
• Colour: Red
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector type: RJ45 male to RJ45 male
• Connector brand: Hirose
• Connector plating: Gold
• Wiring standard: TIA/EIA 568B
• Conductor material: Copper, stranded
• Conductor gauge: AWG 27/7
• Supported data rates: 10/100/1000 Mbps, 10 Gbps
• PoE support: PoE, PoE+, PoE++
• Compliance: RoHS, CE

Recommendations

For maximum performance, pair with shielded RJ45 jacks and ensure proper grounding of the patch panel. Avoid sharp bends and excessive pulling during installation to preserve shielding integrity.
