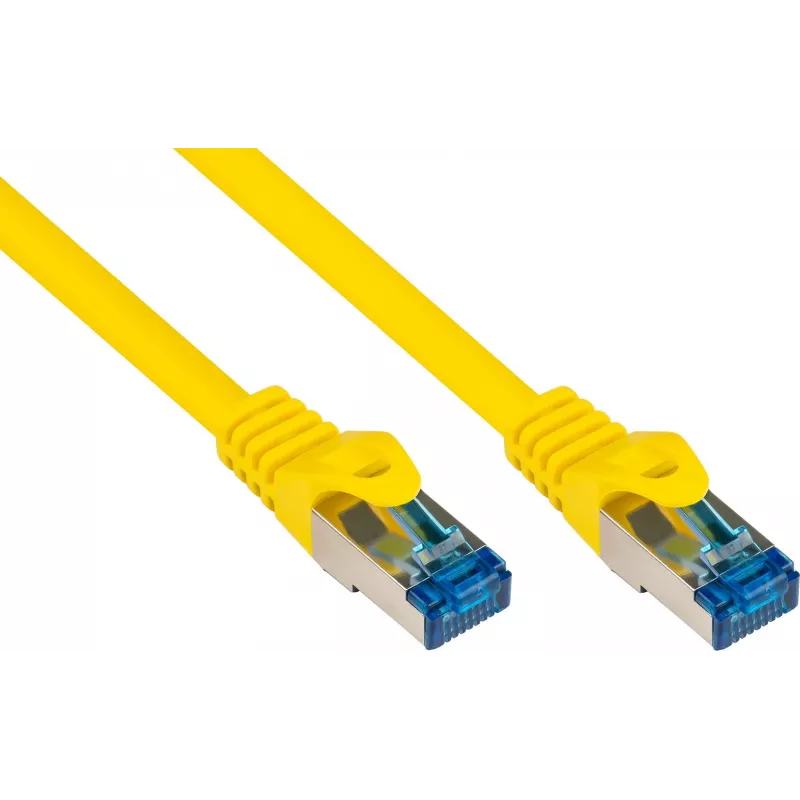

Good Connections RNS® Cat. 6A S/FTP patchkabel met snagless boot, halogeenvrij, geel, 20 m 8060-H200Y

High-performance Cat. 6A patch cable engineered for 10 Gigabit Ethernet, featuring S/FTP shielding with PiMF (pairs in metal foil) and a robust snagless boot (RNS®) to protect the locking tab during frequent moves. The 20-metre yellow cable is halogen-free (LSZH), making it safe for use in public buildings and areas with strict fire safety requirements.

Advantages

The S/FTP construction with individually foil-shielded pairs (PiMF) and an overall braided shield provides superior protection against alien crosstalk and electromagnetic interference, ensuring reliable 10GBASE-T performance up to 500 MHz. The snagless boot prevents accidental disconnections and extends connector life, while the halogen-free jacket reduces toxic smoke emissions in case of fire.

Suitable for

• Data centres and server rooms requiring high-density 10G connections
• Office networks with PoE devices such as IP cameras and VoIP phones
• Industrial environments with high EMI/RFI noise
• Public buildings where LSZH cables are mandatory

Key specifications

• Category: Cat. 6A (500 MHz bandwidth)

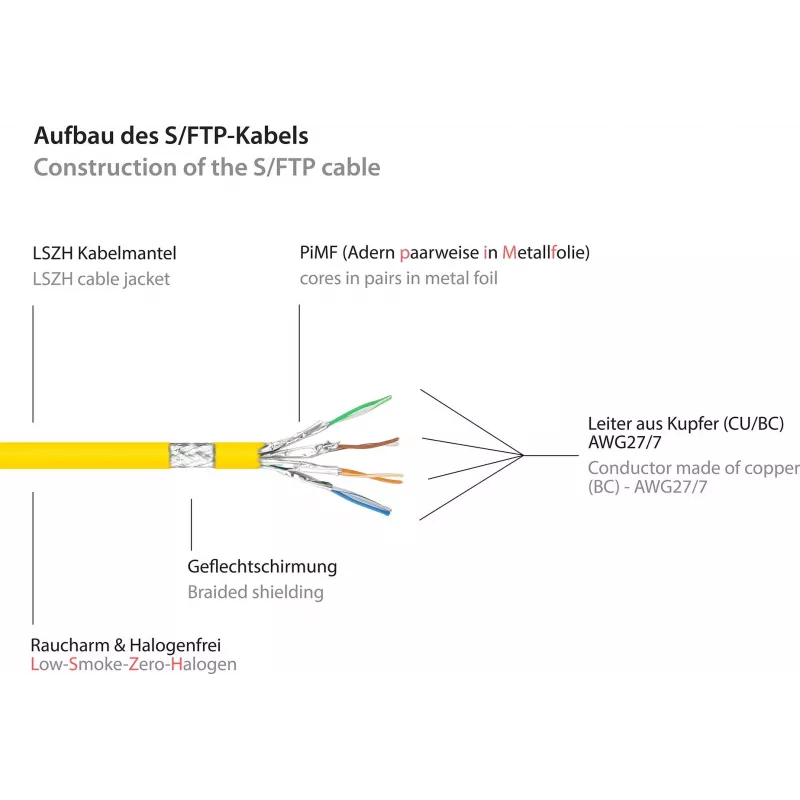

• Shielding: S/FTP (PiMF) – pairs in metal foil, overall braided shield
• Data rate: 10 Gbps (10GBASE-T), backward compatible with Cat. 6, Cat. 5e, Cat. 5
• Length: 20 m
• Colour: Yellow
• Jacket: Halogen-free (LSZH)

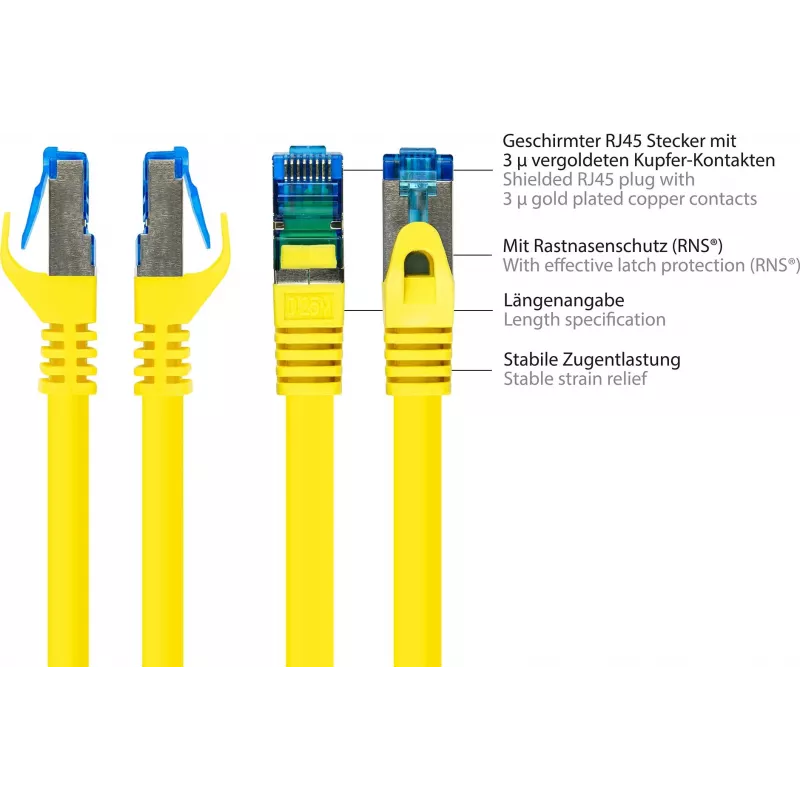

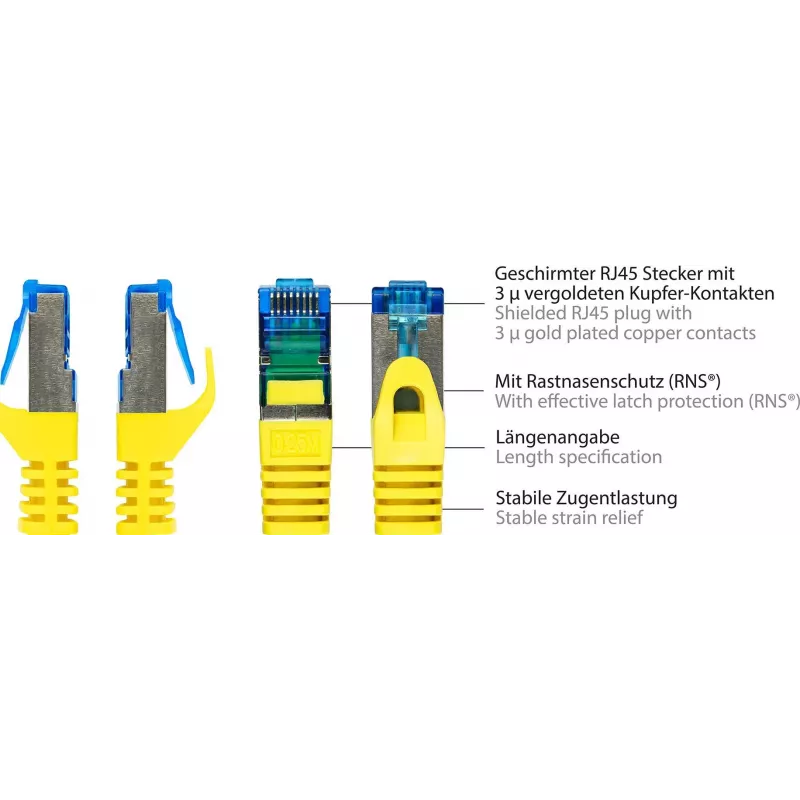

• Connectors: RJ45 male to RJ45 male, snagless boot (RNS®)
• Conductor: Copper

Recommendations

For maximum performance, pair with Good Connections Cat. 6A shielded patch panels and keystone jacks. Avoid sharp bends and maintain proper bend radius to preserve signal integrity. Test with a cable certifier to verify 10G compliance after installation.
