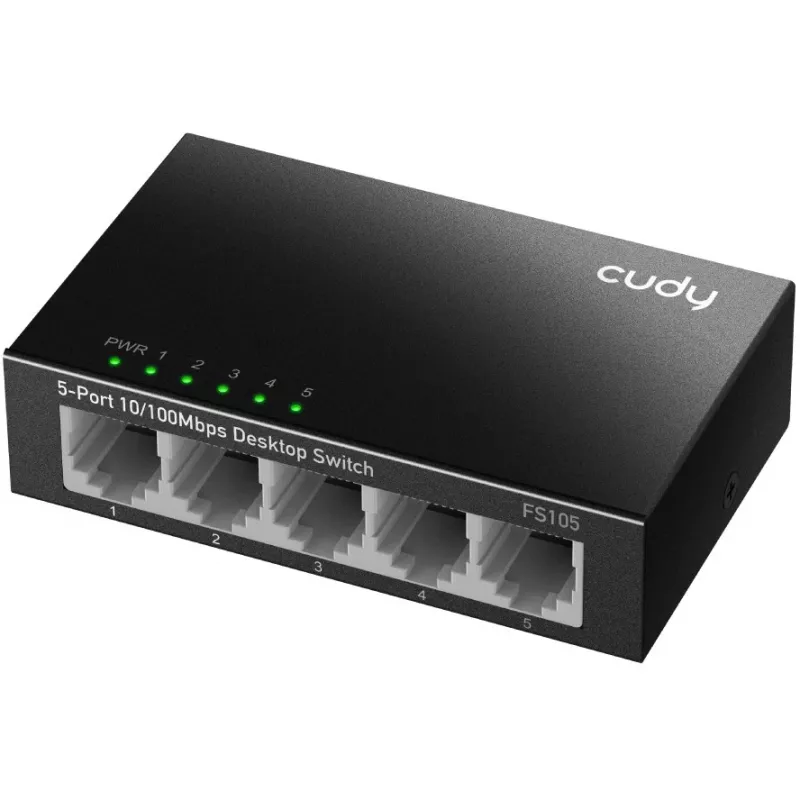

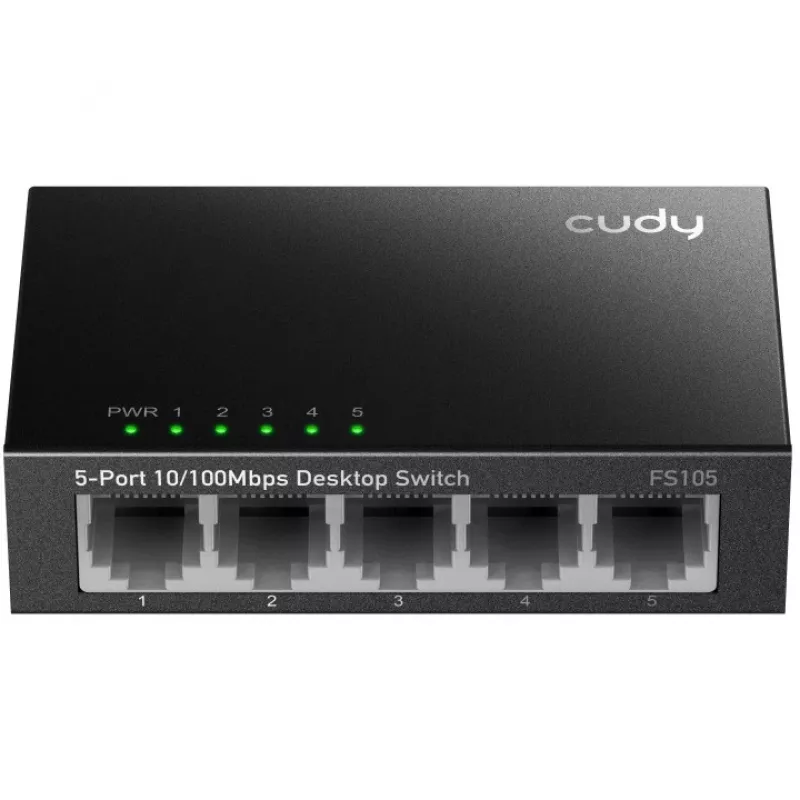

Unmanaged switch Cudy FS105 5 poorten Fast Ethernet 10/100 zwart

The Cudy FS105 is an unmanaged 5-port Fast Ethernet switch with a metal casing, designed for wired network expansion in homes and offices. It provides five 10/100 Mbps ports, a MAC address table with 512 entries and a switching capacity of 1 Gbit/s, supporting IEEE 802.3i and IEEE 802.3u standards for basic reliable connectivity.

Advantages

The metal casing offers durability and EMI shielding while a packet buffer reduces packet loss to improve overall network reliability. The compact form factor fits into telecommunications or cable boxes without requiring additional space. A power-efficient chipset keeps maximum power consumption to 0.9 W and standby consumption to 0.25 W. The housing includes two bottom mounting holes for straightforward wall installation.

Suitable for

• Small home networks
• Home office and small business wired expansions
• Connecting printers, NAS devices, and IP cameras
• Adding extra LAN ports to routers or patch panels

Key specifications

• Model: Cudy FS105 (MPN: FS105, EAN: 6971690793401)
• Ports: 5 × 10/100 Mbps Fast Ethernet
• Switching capacity: 1 Gbit/s
• MAC address table: 512 entries
• Standards: IEEE 802.3i, IEEE 802.3u
• Power consumption: max 0.9 W, standby 0.25 W
• Casing: metal, with two bottom mounting holes

How to use

Place the switch on a flat surface or mount it on a wall using the two mounting holes. Connect Ethernet cables from your router, modem or other network devices to the 10/100 Mbps ports. The device is unmanaged and requires no configuration—connected devices will communicate automatically through the switch. Ensure the switch has adequate ventilation and is not covered to avoid heat buildup.

Recommendations

For best results, connect the switch to a router or modem using a straight-through Cat5e or better Ethernet cable and avoid exceeding the total network bandwidth of 1 Gbit/s across heavy simultaneous transfers. Place the switch in a dry, well-ventilated location and secure it using the provided mounting holes if wall mounting is required.
