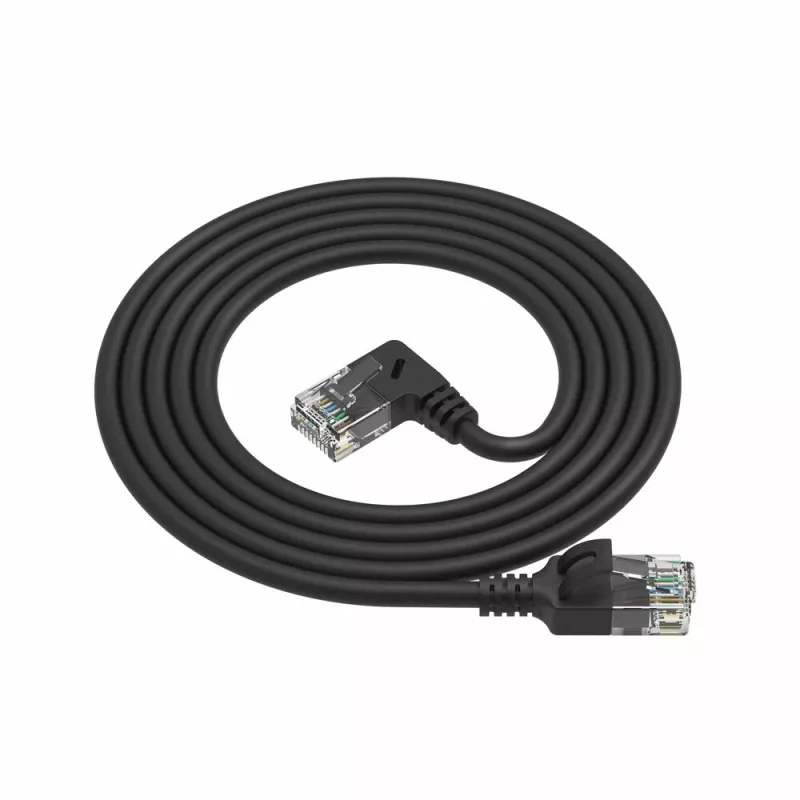

ACT Zwart 5 meter U/UTP CAT6A LSZH Slimline patchkabel met RJ45-stekkers 90° haaks rechts naar recht

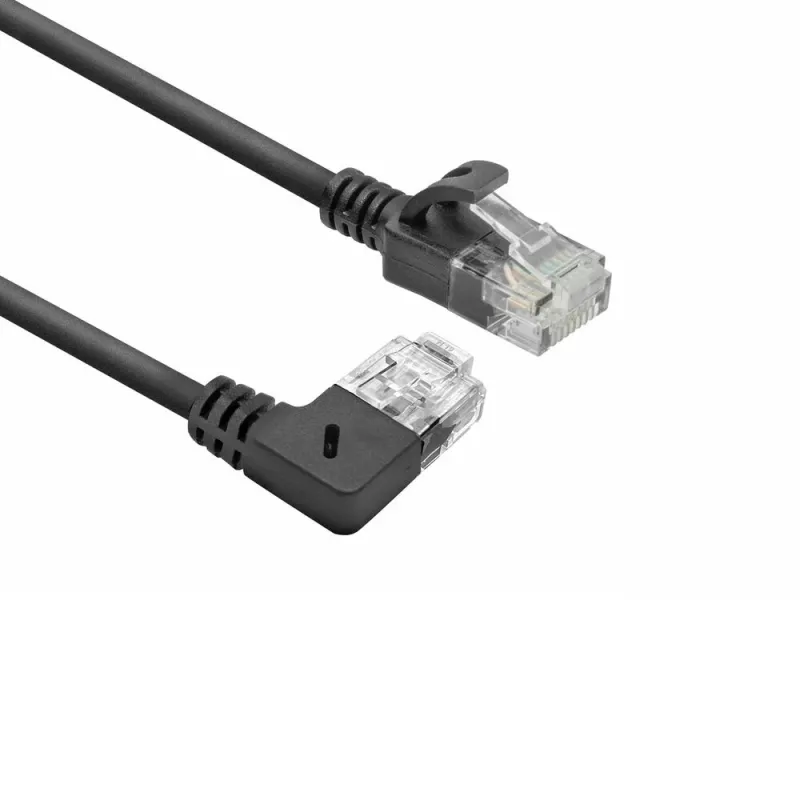

ACT Black 5m RJ45 Cat6A U/UTP slimline patch cable is a 5-meter straight-through network cable with a slim 3.6 mm diameter LSZH jacket. It features one straight RJ45 connector and one 90° angled right RJ45 connector, 28 AWG full copper conductors and 50µ gold-plated contacts. The cable meets ANSI/TIA-568.2-D Cat6A requirements and is designed for datacenter and cabinet installations where reduced diameter and improved airflow are important.

Advantages

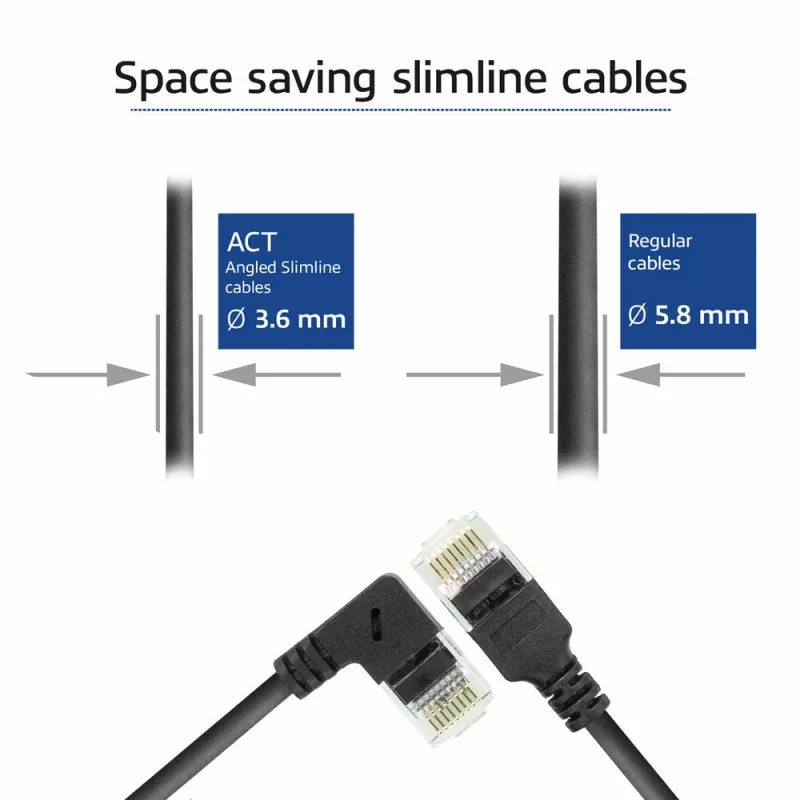

The slimline construction (3.6 mm) and reduced bend radius allow denser cable routing and better airflow in server racks and network cabinets compared with standard Cat6A cables. The LSZH jacket lowers the risk of toxic smoke in case of fire. Gold-plated RJ45 contacts and full-copper 28 AWG conductors provide reliable electrical contact and compliance with Cat6A performance standards.

Suitable for

• Data centers and server racks
• Network cabinets and patch panels
• Tight or confined installation spaces behind equipment
• Structured cabling where Cat6A performance is required

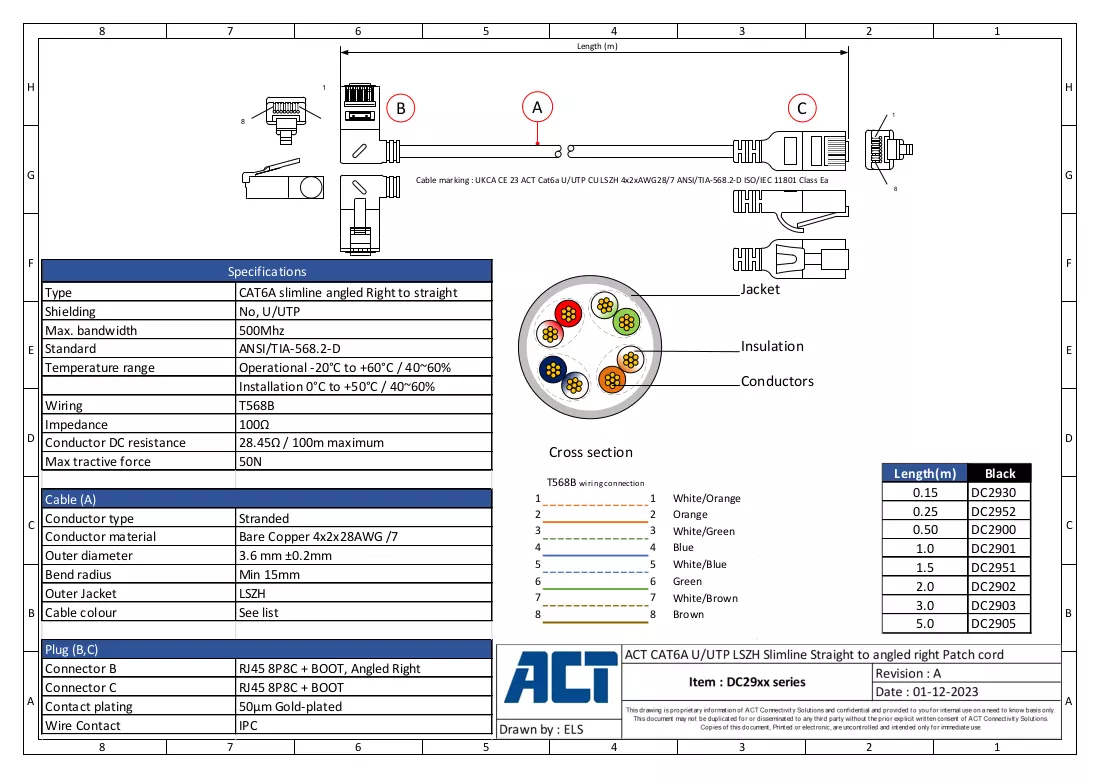

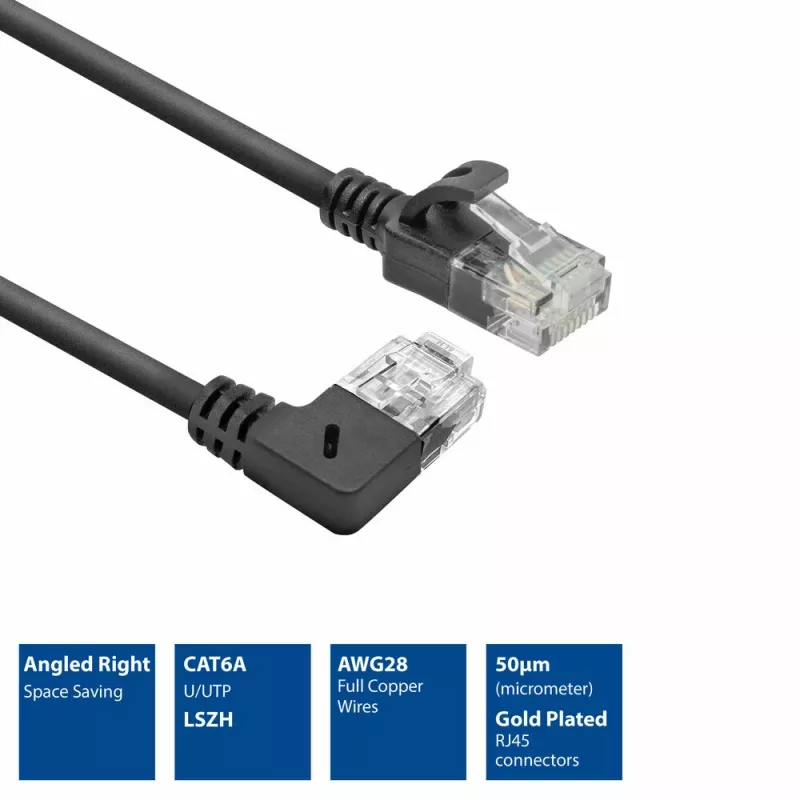

Key specifications

• Length: 5 m
• Cable type: CAT6A U/UTP slimline, straight-through
• Diameter: approx. 3.6 mm (slimline)
• Conductor: 28 AWG, full copper

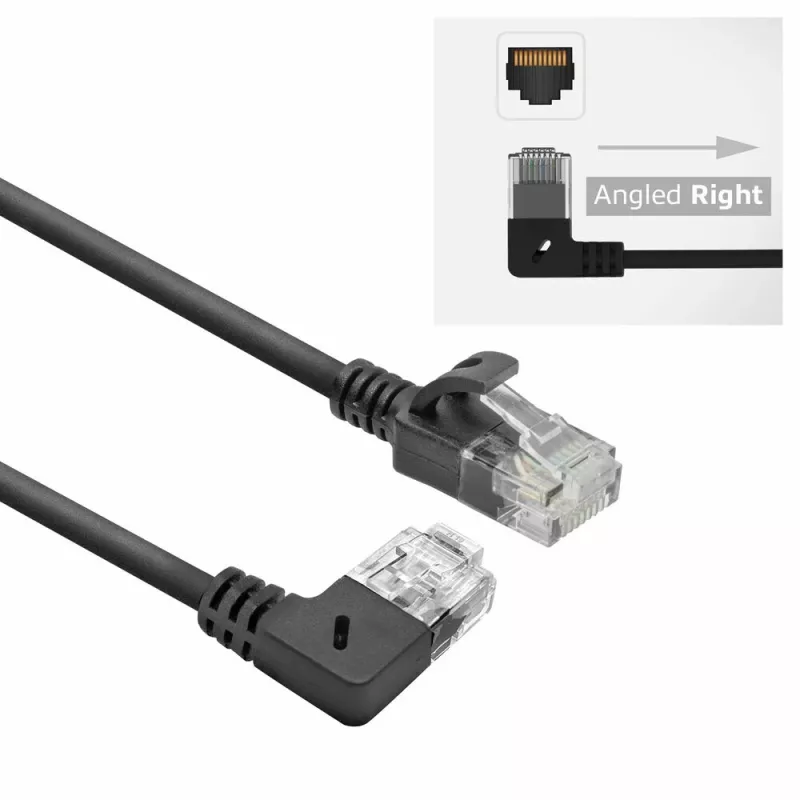

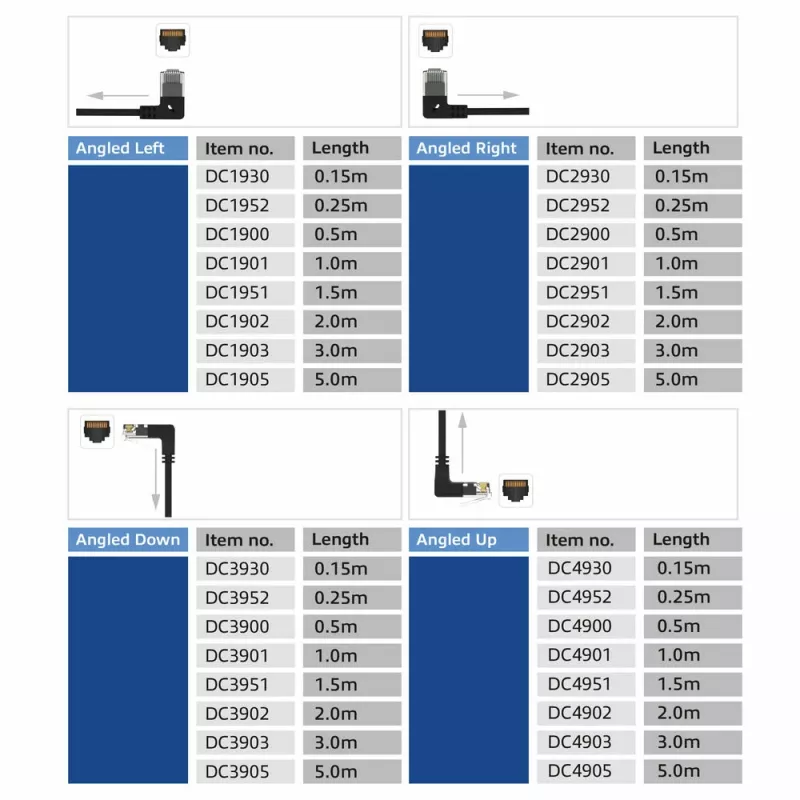

• Connectors: RJ45 straight + RJ45 90° right
• Contacts: 50 µin gold plated
• Jacket: LSZH (Low Smoke Zero Halogen)
• Standards: ANSI/TIA-568.2-D (Cat6A)
• Colour: Black

How to use

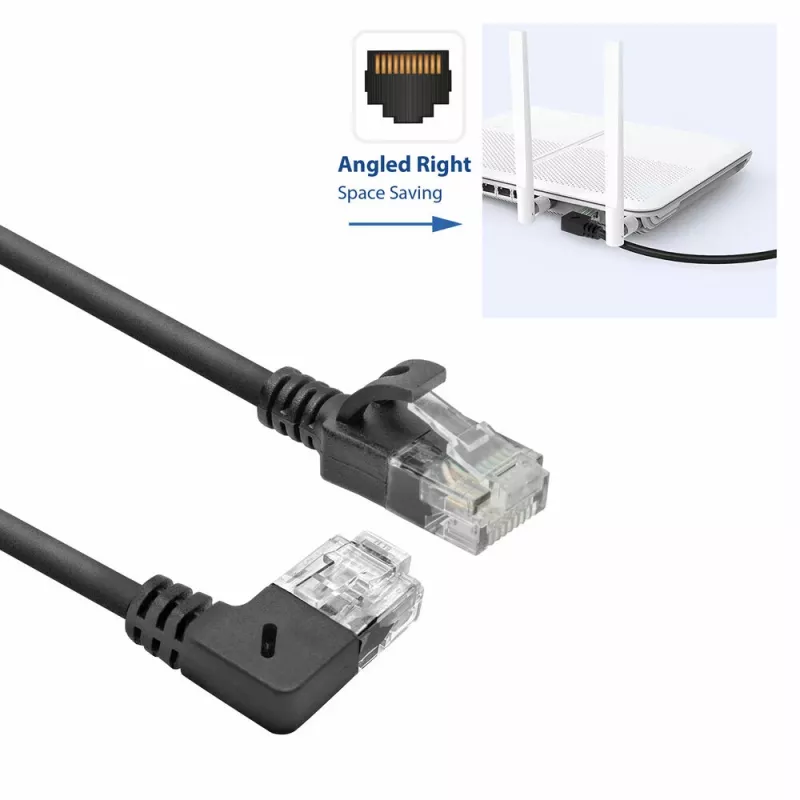

Connect the straight RJ45 end to your network device or switch and the 90° angled right RJ45 end to the patch panel or outlet where space is limited. Route the cable through the rack or cabinet maintaining gentle bends compatible with the reduced bend radius to avoid damaging the conductors. Ensure connectors are fully inserted until they click and test links with appropriate network testing tools after installation.

Recommendations

For optimal airflow and cable management in dense racks use slimline cables like this ACT Cat6A U/UTP and bundle runs neatly; avoid sharp kinks and keep recommended bend radius to preserve performance. Use a cable tester to verify Cat6A compliance after installation.
